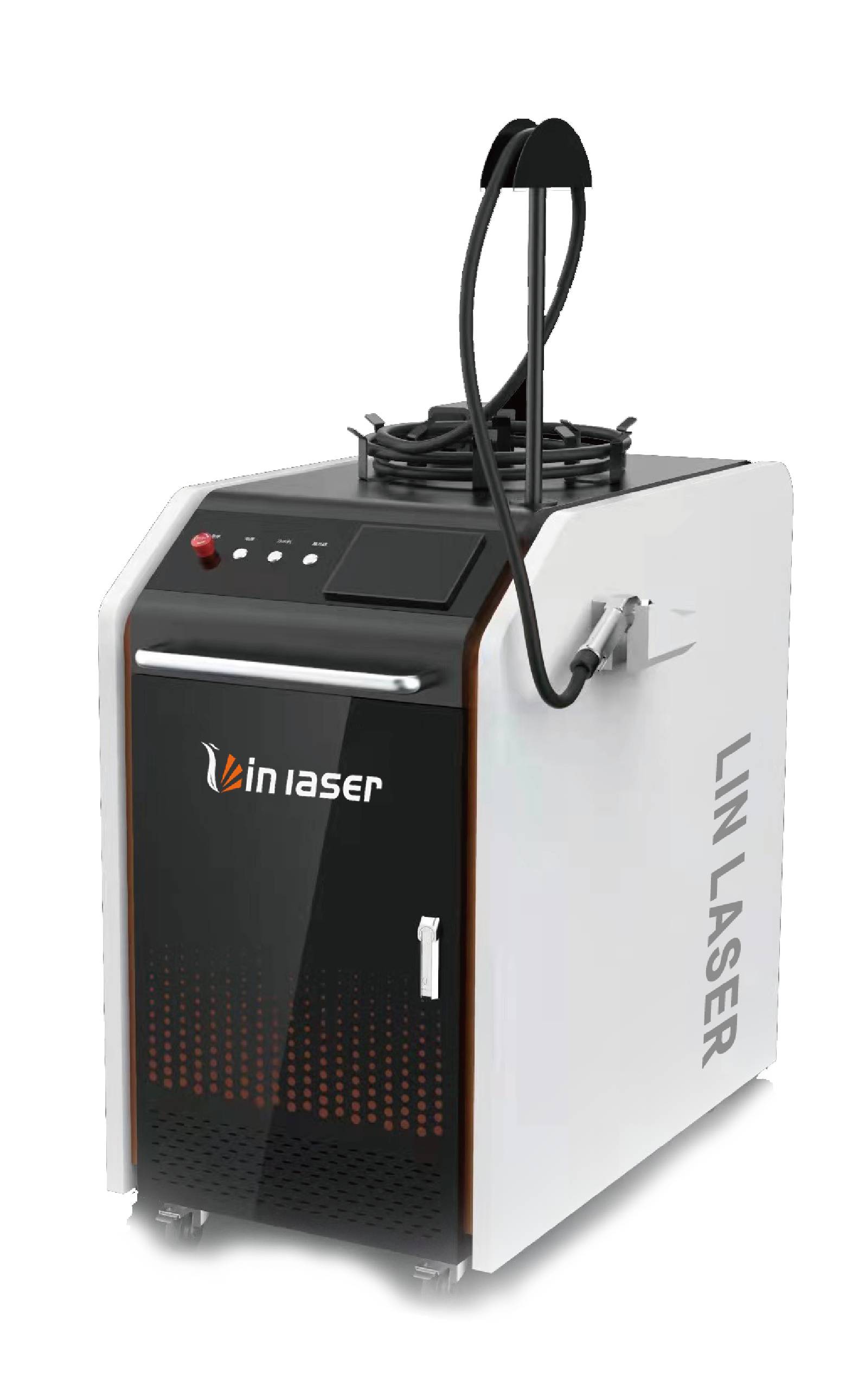

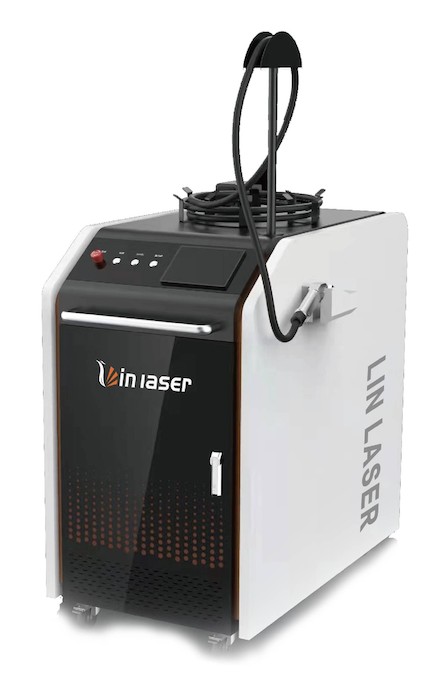

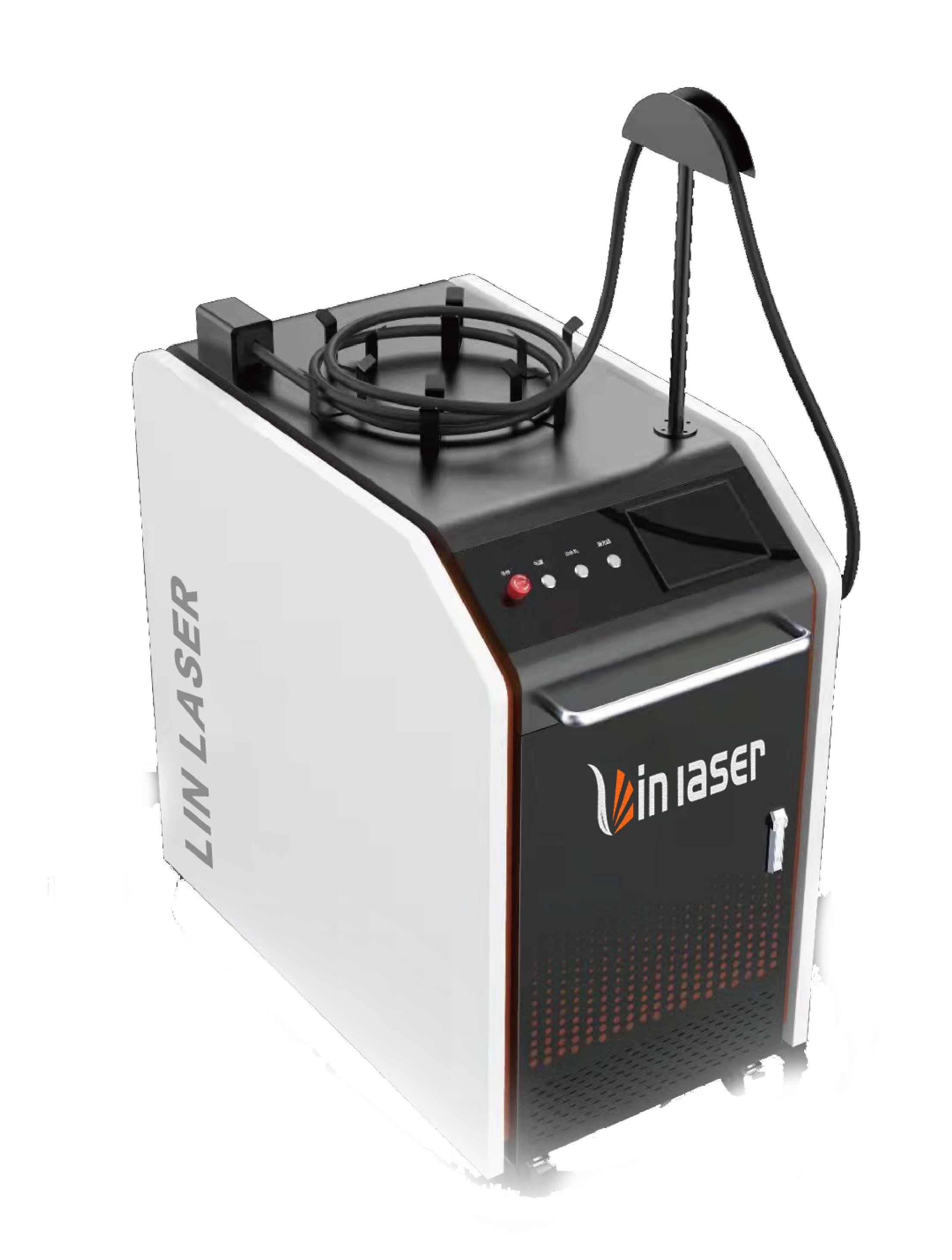

Laser Welding Machine
Features and advantages of handheld laser welding machine:
1. The welding gun of hand-held laser welding machine replaces the traditional fixed optical path, which is more flexible and convenient, realizes long-distance laser welding and overcomes the limitation of travel space of worktable;
2. The hand-held welding head is light and flexible, easy to operate, and can meet the welding of various angles and positions. It can weld the workpiece to the required parts, which is sensitive and convenient. It can complete outdoor welding and apply all kinds of messy welding. Spot welding equipment.
3. The handheld welding head is equipped with optical fiber, which is flexible and convenient for outdoor welding. The workpiece can be welded at any angle, the dual optical path can be switched intelligently, and the time-division energy distribution is uniform.
4. The handheld laser welding machine adopts infrared positioning, and the welding head position verification and proofing position during welding. The welding position is more accurate and the weld is more beautiful.
5. Low maintenance cost: laser welding machine, without fine welding station, has low material, low energy consumption and low equipment deployment and maintenance cost. In the same working environment, we need to spend a lot of time maintaining the welding table. The deployment of manual laser setting equipment can be completed by hand-held laser welding.
Hand held laser welding machine is a portable operating device. It is also a precision welding equipment, which can be freely and flexibly used in various environmental applications. For some production operations, it is applicable to various operations and packaging management. It can easily apply different types of environments, and has higher professional standards and reliability functions. The professional production target of handheld laser welding machine has the advantages of high standard and specialty. At the same time, it is also a practical humanized design in the process of ensuring accurate welding targets.
Specification
Basic Parameters | |||
Working parameters | LW | ||
Laser Power | 1000W/1500W/2000W/3000W | ||
Laser Wave Length | 1070nm | ||
Working Environment | 10℃~40℃ | ||
Rated voltage | 1000/1500W Single phase 220V | ||
2000W Three phase 380V | |||
Frequency | 50/60Hz | ||
Total Machine weight | 120KG | ||
Machine dimensions | 1200*680*1000mm | ||
Parameters Data | |||
Model | LW10 | LW15 | LW20 |
Laser Power | 1000W | 1500W | 2000W |
(Stainless steel,1m/min) | 3mm | 4mm | 5mm |
(Carbon steel,1m/min) | 2.5mm | 3mm | 4mm |
(Aluminium alloy,1m/min) | 2mm | 3mm | 4mm |
cooling method | Built in water cooling |
