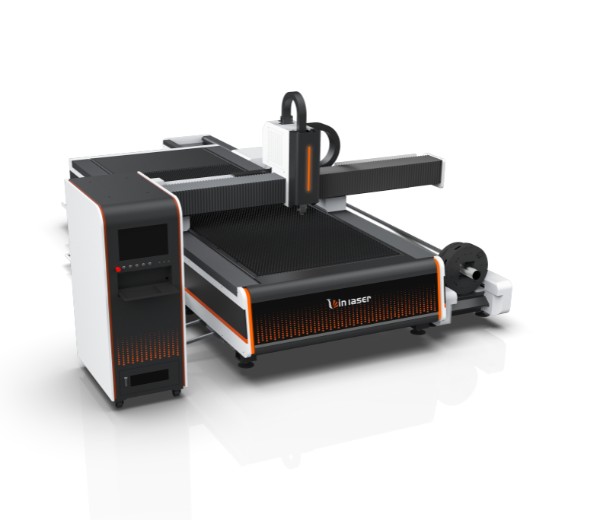

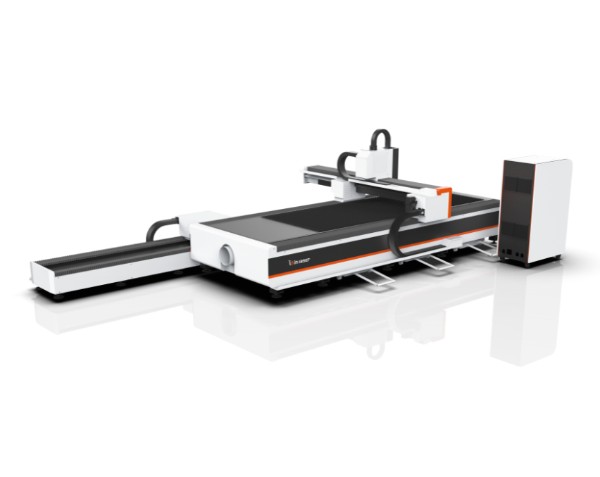

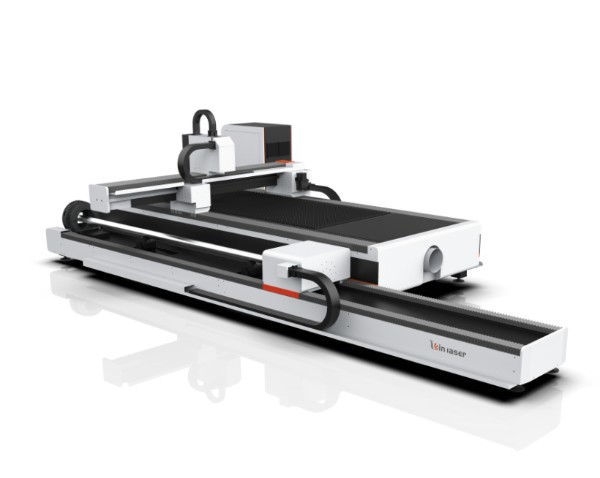

Tube Sheet Integrated Laser Cutting Machine

This equipment has many benefits besides cutting all kinds of sheet metal efficiently. In addition, the processing speed of steel pipes is also very fast. The constant gripping layout allows brief adjustments to different tubes, resulting in a high-precision product during processing. The equipment is ready a professional chuck and furniture to precisely system pipes of all shapes and sizes. Laser tube cutting is a production efficiency. In an age of excess, robustness, bending, operators can adjust layout schemes without affecting the entire product production process; the added advantage is that stop users can manipulate the manufacture of short or medium variants without creating extensive templates, so you can Respond faster to customer needs without casting models.

  Contact Now
Product Details

It can cut metal sheets and metal pipes. In the metal processing industry, the integrated laser cutting machine for plate and tube is more and more widely used. Many metal fabrication manufacturers have both sheet metal and metal tube fabrication needs. The plate-tube integrated laser cutting machine is naturally the first choice, which can not only meet the processing needs of customers, but also save the cost of equipment procurement, and one machine can be used for multiple purposes. The main body of the equipment adopts welding bed technology, with high mechanical strength, relatively short production cycle, easy to organize production, and low thermal sensitivity. The laser adopts international advanced technology and unique cutting process database, which can perform different intelligent cutting and optimization for different materials. The cutting surface, the cutting material range is wider, the speed is faster, the quality is better, the cost is lower, and it can be applied to the full coverage of low-power to high-power lasers.

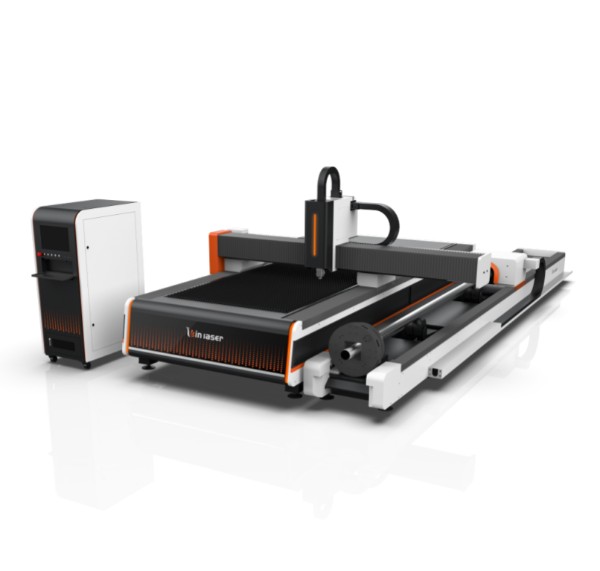

Tube Sheet Integrated Laser Cutting Machine.jpg

Specification

Function&meter List
●standard configuration,         ○optional configuration,
×No configuration required

LA6T6

LA4T6

LA3T3


Item


Subitem


basic parameter


Working area

6100mm*1524mm

4000mm*1524mm

3050mm*1530mm


Max. linkage speed

91m/min

91m/min

91m/min


Tube size range

Round tube    Φ20-Φ230mm
Square tube   □20 - □160mm
Rectangular tube:
170mm≥Side length≥20mm,
Circumscribed circle diameter≤230mm

Round tube    Φ20-Φ230mm
Square tube   □20 - □160mm
Rectangular tube:
170mm≥Side length≥20mm,
Circumscribed circle diameter≤230mm

Round tube    Φ20-Φ230mm
Square tube   □20 - □160mm
Rectangular tube:
170mm≥Side length≥20mm,
Circumscribed circle diameter≤230mm


Chuck maximum load

100kg  16kg/m

100kg  16kg/m

100kg  16kg/m


Optical system


Laser source


MAX/IPG


MAX/IPG


MAX/IPG


laser head


Ospri


Ospri


Ospri


mechanical system


Machine bed


Mortise-and-tenon type plate welded segmented bed


Mortise-and-tenon type plate welded segmented bed


Mortise-and-tenon type plate welded segmented bed


Chuck drive types


Pneumatic chuck


Pneumatic chuck


Pneumatic chuck


Max. length of tube


C-M3/6 tube maximum length is 3m or 6m


C-M3/6 tube maximum length is 3m or 6m


C-M3/6 tube maximum length is 3m or 6m


X-axis、Y-axis、Z-axisServo motor and driver


 Japan Fuji/France Schneider


 Japan Fuji/France Schneider


 Japan Fuji/France Schneider


Linear Rails


Made in Taiwan


Made in Taiwan


Made in Taiwan


Rack


Made in Taiwan


Made in Taiwan


Made in Taiwan


Electrical system


Control system

FSCUT

FSCUT

FSCUT


Proportional gas valve


 Japan SMC/Germany AVENTICS


 Japan SMC/Germany AVENTICS


 Japan SMC/Germany AVENTICS


O2 Cutting gas control valve


Japan SMC


Japan SMC


Japan SMC


N2 Cutting gas control valve


Japan SMC


Japan SMC


Japan SMC


Intelligent alarm


Acceptable file formats, sheet cutting

G文件、DXF、DWG、PLT、ENG
G file、DXF、DWG、PLT、ENG

G文件、DXF、DWG、PLT、ENG
G file、DXF、DWG、PLT、ENG

G文件、DXF、DWG、PLT、ENG
G file、DXF、DWG、PLT、ENG


Acceptable file formats, pipe/tube cutting

IGS

IGS

IGS
