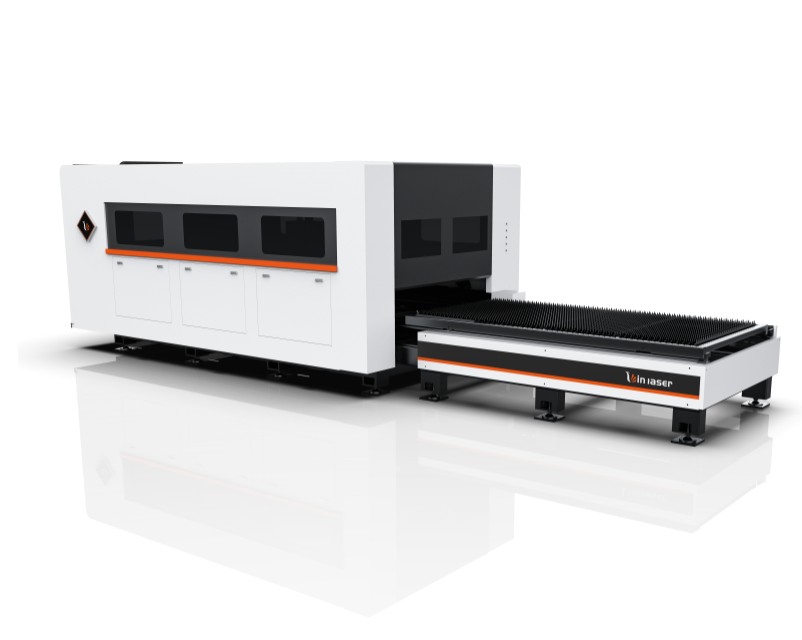

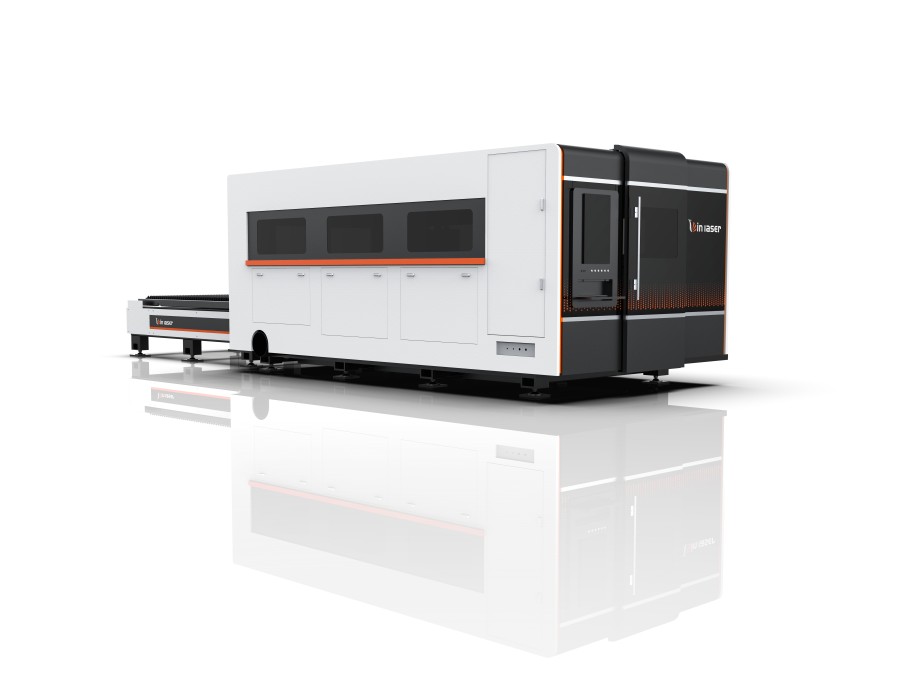

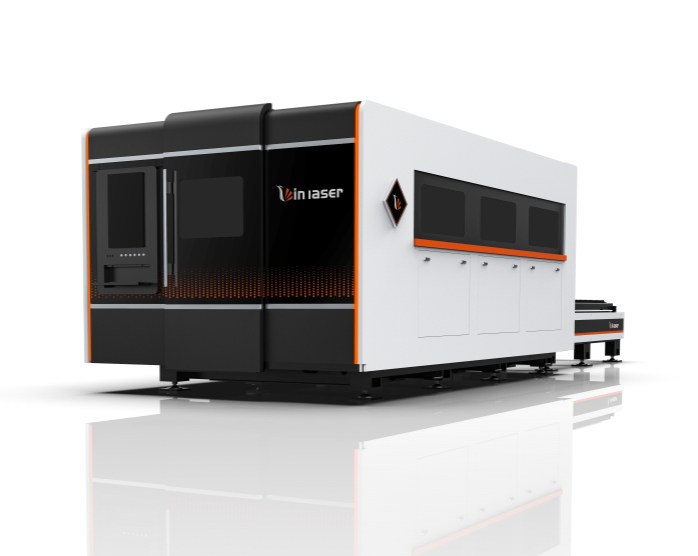

Fast Speed Laser Cutting Machine
Laser metal cutting machine, laser metal plate cutting machine, Lin Laser LC series high-end laser cutting machine, high speed and stability, large encirclement design, 10000 watts high power. LC series laser cutting machine has the characteristics of high precision, fast cutting speed, not limited by cutting pattern, automatic typesetting, material saving, smooth incision and low processing cost. It will gradually improve or replace traditional metal cutting equipment.
The main body of the equipment adopts the casting bed process, which has higher machining accuracy, better shock resistance and higher stability. Parallel interactive workbench, all-round sanitation, safe operation and double the efficiency. Regional negative pressure dust removal, clean and environmentally friendly. The laser adopts international advanced technology and a unique cutting process database, which can carry out different intelligent cutting for different materials, optimize the cutting surface, cut a wider range of materials, faster speed, better quality and lower cost, and can be applied to low power Full coverage to high power lasers.
Cast aluminum beams are fast. Aluminum alloy has the characteristics of light weight and strong rigidity, which is conducive to high-speed movement during processing, and high flexibility is conducive to high-speed cutting of various graphics on the basis of high precision.
Specification
Function meter List | LC8025 | LC6025 | LC4020 | LC3015 | ||
●standard configuration, | ||||||
○optional configuration, | ||||||
×No configuration required | ||||||
Item | Subitem | |||||
Basic parameter | Working area | 8100mm*2500mm | 6100mm*2500mm | 4000mm*2000mm | 3050mm*1530mm | |
Max.linkage speed | 160m/min | 160m/min | 160m/min | 140m/min | ||
Automatic adjustment of cutting gas pressure | 6KW below:O2 | 6KW below:O2 | 6KW below:O2 | 6KW below:O2 | ||
6KW and above:O2、N2、air | 6KW and above:O2、N2、air | 6KW and above:O2、N2、air | 6KW and above:O2、N2、air | |||
Auto-focus of laser head | ● | ● | ● | ● | ||
Performance | Max.acceleration | 2G | 2G | 2G | 2G | |
Table load bearing | 6200kg(1-4kw) | 4750kg(1-4kw) | 3550kg(1-4kw) | 1800kg(1-4kw) | ||
8000kg(≥6kw) | 6300kg(≥6kw) | 4700kg(≥6kw) | 2500kg(≥6kw) | |||
Machine overall dimensions | 19700*4215*2400mm | 15300*4500*2400mm | 12000*3700*2300mm | 9550*2330*2300mm | ||
Overall weight | 22500kg | 19500kg | 11000kg | 8300kg | ||
Configuration | Optical system | laser head | 12KW and below:BLT/Ray Tools | 12KW and below:BLT/Ray Tools | 12KW and below:BLT/Ray Tools | 12KW and below:BLT/Ray Tools |
12KW and above:Germany Precitec/BLT | 12KW and above:Germany Precitec/BLT | 13KW and above:Germany Precitec/BLT | 14KW and above:Germany Precitec/BLT | |||
Laser source | MAX/IPG/Raycus/GW | MAX/IPG/Raycus/GW | MAX/IPG/Raycus/GW | MAX/IPG/Raycus/GW | ||
mechanical system | Bed | ○Cast iron bed | ○Cast iron bed | ○Cast iron bed | ○Cast iron bed | |
○welded bed | ○welded bed | ○welded bed | ○welded bed | |||
Cast aluminum cantilever | ● | ● | ● | ● | ||
X-axis、Y-axis、Z-axis Servo motor and driver | Japan Yaskawa | Japan Yaskawa | Japan Yaskawa | Japan Yaskawa | ||
Linear Rails | Made in Taiwan HiWin | Made in Taiwan HiWin | Made in Taiwan HiWin | Made in Taiwan HiWin | ||
Rack | Made in Taiwan YYC | Made in Taiwan YYC | Made in Taiwan YYC | Made in Taiwan YYC | ||
Protective Enclosure | ● | ● | ● | ● | ||
Enhanced-partition Dust Removal | ● | ● | ● | ● | ||
Electrical system | Control system | FSCUT2000S | FSCUT2000S | FSCUT2000S | FSCUT2000S | |
8kw:FSCUT8000 | 8kw:FSCUT8000 | 8kw:FSCUT8000 | 8kw:FSCUT8000 | |||
Electrical proportional valve | Japan SMC/Germany AVENTICS | Japan SMC/Germany AVENTICS | Japan SMC/Germany AVENTICS | Japan SMC/Germany AVENTICS | ||
O2Cutting gas control valve | Japan SMC | Japan SMC | Japan SMC | Japan SMC | ||
N2Cutting gas control valve | 4KW and below:Japan SMC | 4KW and below:Japan SMC | 4KW and below:Japan SMC | 4KW and below:Japan SMC | ||
6KW and above:Germany AVENTICS | 6KW and above:Germany AVENTICS | 6KW and above:Germany AVENTICS | 6KW and above:Germany AVENTICS |
