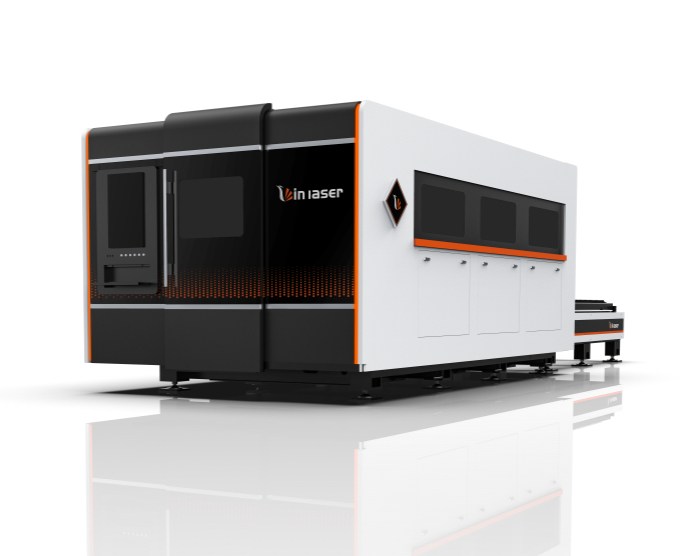

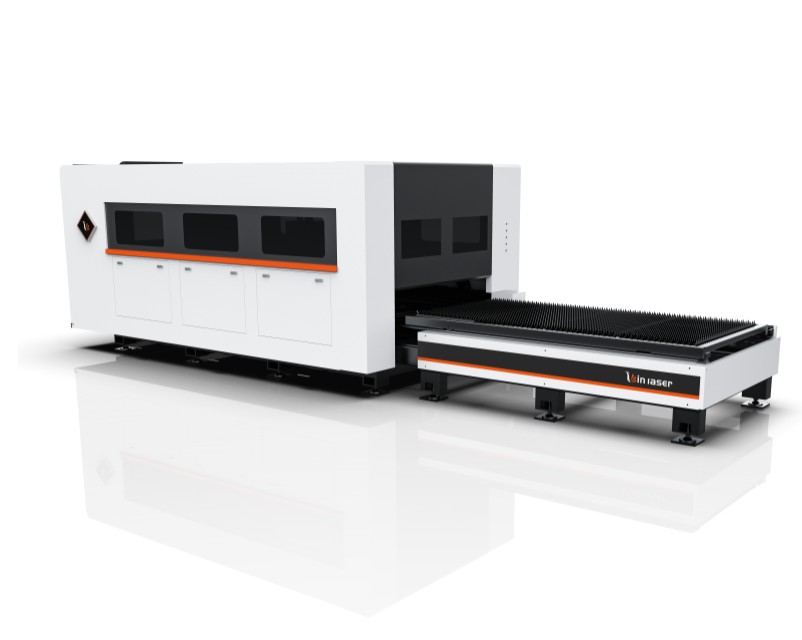

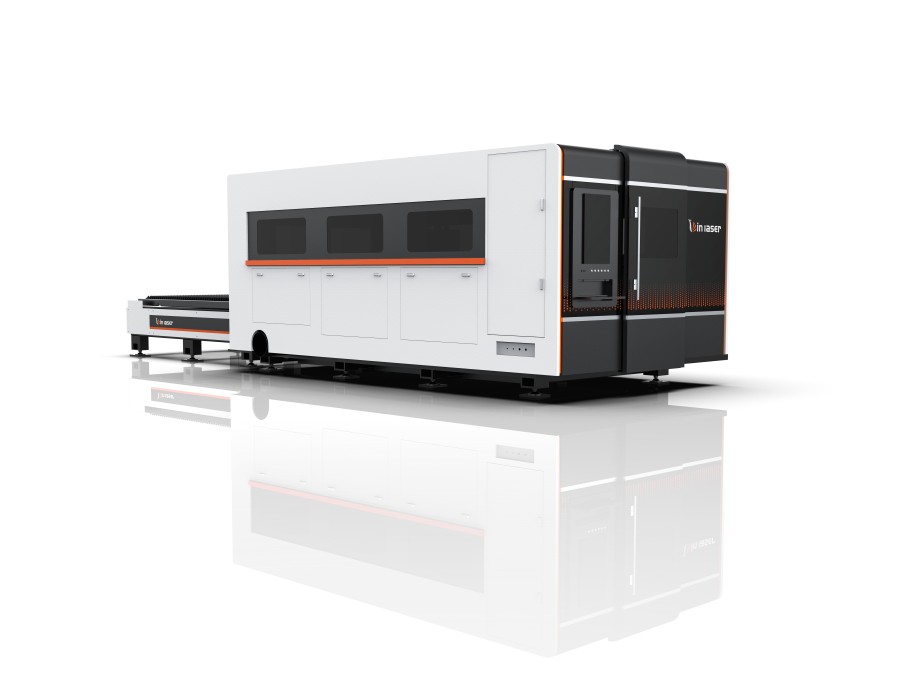

High-speed Laser Cutting Machine

The laser adopts international advanced technology.The main body of the equipment adopts the casting bed process, which has higher machining accuracy, better seismic resistance and higher stability.

Parallel interactive worktable, full surrounding protection, safe operation and doubled efficiency. Zone negative pressure dust removal, clean and environment-friendly.



Contact Now E-Mail Telephone WhatsApp
Product Details

Since its establishment, Lin Laser Technology Co., Ltd. has paid attention to the optimization and integration of technology, quality, application, market and other resources. Lin laser focuses on large, medium and small format laser cutting machines. Closely following the international frontier and in close cooperation with world-famous laser supporting suppliers such as Germany, the United States and the United Kingdom, the developed laser equipment has high photoelectric conversion rate, good beam quality and stable performance. A number of technologies have been in the leading position in China, especially the solid-state laser cutting machine in Asia in terms of cutting thickness and cutting speed. The LC series products of Lin laser are equipped with professional cutting software, adopt full surrounding double platform design and all-round monitoring system to ensure the safe and stable cutting operation. The high-strength cast iron bed has small deformation of the overall mechanical structure, low vibration and high precision. Since the model came out, it has been highly praised and recognized by customers at home and abroad. It is exported to Malaysia, South Korea, Russia, Europe and America and other countries and regions.


High-speed Laser Cutting Machine.jpg


Specification


Function¶meter List

LC8025

LC6025

LC4020

LC3015

●standard configuration,

○optional configuration,

×No configuration required

Item

Subitem

Basic parameter

Working area

8100mm*2500mm

6100mm*2500mm

4000mm*2000mm

3050mm*1530mm

Max.linkage speed

160m/min

160m/min

160m/min

140m/min


Automatic adjustment of cutting gas pressure

6KW below:O2

6KW below:O2

6KW below:O2

6KW below:O2

6KW and above:O2、N2、air

6KW and above:O2、N2、air

6KW and above:O2、N2、air

6KW and above:O2、N2、air

Auto-focus of laser head

Performance

Max.acceleration

2G

2G

2G

2G

Table load bearing

6200kg(1-4kw)

4750kg(1-4kw)

3550kg(1-4kw)

1800kg(1-4kw)

8000kg(≥6kw)

6300kg(≥6kw)

4700kg(≥6kw)

2500kg(≥6kw)

Machine overall dimensions

19700*4215*2400mm

15300*4500*2400mm

12000*3700*2300mm

9550*2330*2300mm

Overall weight

22500kg

19500kg

11000kg

8300kg

Configuration

Optical system

laser head

12KW and below:BLT/Ray Tools

12KW and below:BLT/Ray Tools

12KW and below:BLT/Ray Tools

12KW and below:BLT/Ray Tools

12KW and above:Germany Precitec/BLT

12KW and above:Germany Precitec/BLT

13KW and above:Germany Precitec/BLT

14KW and above:Germany Precitec/BLT

Laser source

MAX/IPG/Raycus/GW

MAX/IPG/Raycus/GW

MAX/IPG/Raycus/GW

MAX/IPG/Raycus/GW

mechanical system

Bed

○Cast iron bed

○Cast iron bed

○Cast iron bed

○Cast iron bed

○welded bed

○welded bed

○welded bed

○welded bed

Cast aluminum cantilever

X-axis、Y-axis、Z-axis Servo motor and driver

Japan Yaskawa

Japan Yaskawa

Japan Yaskawa

Japan Yaskawa

Linear Rails

Made in Taiwan HiWin

Made in Taiwan HiWin

Made in Taiwan HiWin

Made in Taiwan HiWin

Rack

Made in Taiwan YYC

Made in Taiwan YYC

Made in Taiwan YYC

Made in Taiwan YYC

Protective Enclosure

Enhanced-partition Dust Removal

Electrical system

Control system

FSCUT2000S

FSCUT2000S

FSCUT2000S

FSCUT2000S

8kw:FSCUT8000

8kw:FSCUT8000

8kw:FSCUT8000

8kw:FSCUT8000

Electrical proportional valve

Japan SMC/Germany AVENTICS

Japan SMC/Germany AVENTICS

Japan SMC/Germany AVENTICS

Japan SMC/Germany AVENTICS

O2Cutting gas control valve

Japan SMC

Japan SMC

Japan SMC

Japan SMC

N2Cutting gas control valve

4KW and below:Japan SMC

4KW and below:Japan SMC

4KW and below:Japan SMC

4KW and below:Japan SMC

6KW and above:Germany AVENTICS

6KW and above:Germany AVENTICS

6KW and above:Germany AVENTICS

6KW and above:Germany AVENTICS
