Laser Cutting Machine for High-speed

Laser cutting is the most widely used processing method in the laser processing industry. The invisible light beam replaces the traditional mechanical knife, which has the characteristics of high precision, fast cutting, not limited to the limitation of cutting pattern, automatic typesetting, saving materials, smooth incision and low processing cost. It will gradually improve or replace the traditional metal cutting process equipment.

Contact Now E-Mail Telephone WhatsApp

Product Details

Since its establishment, Shandong Lin Laser Technology Co., Ltd. has paid attention to the optimization and integration of technology, quality, application, market and other resources. Lin laser focuses on large, medium and small format laser cutting machines. Closely following the international frontier and in close cooperation with world-famous laser supporting suppliers such as Germany, the United States and the United Kingdom, the developed laser equipment has high photoelectric conversion rate, good beam quality and stable performance. A number of technologies have been in the leading position in China, especially the solid-state laser cutting machine in Asia in terms of cutting thickness and cutting speed. The LC series products of Lin laser are equipped with professional cutting software, adopt full surrounding double platform design and all-round monitoring system to ensure the safe and stable cutting operation. The high-strength cast iron bed has small deformation of the overall mechanical structure, low vibration and high precision. Since the model came out, it has been highly praised and recognized by customers at home and abroad. It is exported to Malaysia, South Korea, Russia, Europe and America and other countries and regions.

The unique cutting process database can carry out different intelligent cutting for different materials, optimize the cutting surface, cut a wider range of materials, faster speed, better quality and lower cost, and can be applied to the full coverage of low-power to high-power lasers.

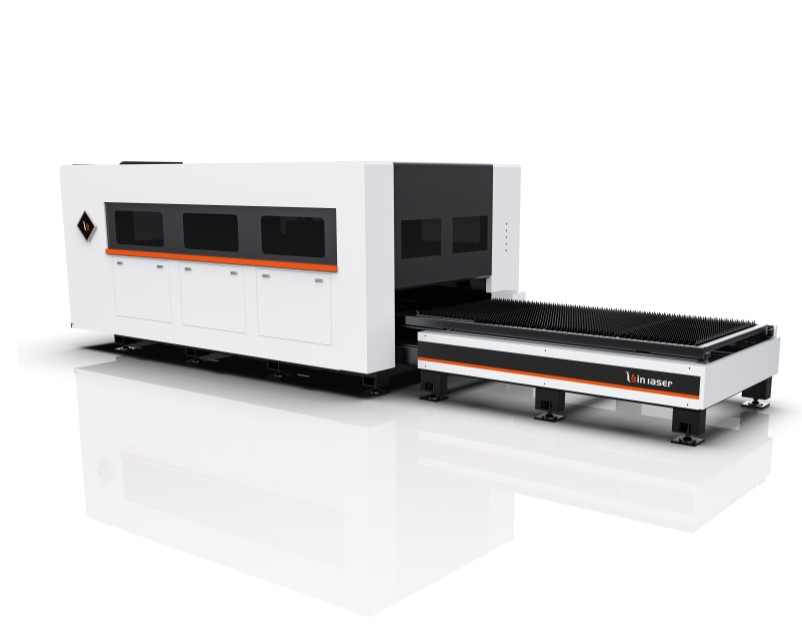

Laser Cutting Machine for High-speed .jpg

Specification

Function meter List			LC8025	LC6025	LC4020	LC3015
●standard configuration，
○optional configuration，
×No configuration required
Item		Subitem
Basic parameter		Working area	8100mm*2500mm	6100mm*2500mm	4000mm*2000mm	3050mm*1530mm
Basic parameter		Max.linkage speed	160m/min	160m/min	160m/min	140m/min
		Automatic adjustment of cutting gas pressure	6KW below：O2	6KW below：O2	6KW below：O2	6KW below：O2
		Automatic adjustment of cutting gas pressure	6KW and above：O2、N2、air	6KW and above：O2、N2、air	6KW and above：O2、N2、air	6KW and above：O2、N2、air
		Auto-focus of laser head	●	●	●	●
Performance		Max.acceleration	2G	2G	2G	2G
		Table load bearing	6200kg（1-4kw）	4750kg（1-4kw）	3550kg（1-4kw）	1800kg（1-4kw）
		Table load bearing	8000kg（≥6kw）	6300kg（≥6kw）	4700kg（≥6kw）	2500kg（≥6kw）
		Machine overall dimensions	1970042152400mm	1530045002400mm	1200037002300mm	955023302300mm
		Overall weight	22500kg	19500kg	11000kg	8300kg
Configuration	Optical system	laser head	12KW and below：BLT/Ray Tools	12KW and below：BLT/Ray Tools	12KW and below：BLT/Ray Tools	12KW and below：BLT/Ray Tools
		laser head	12KW and above：Germany Precitec/BLT	12KW and above：Germany Precitec/BLT	13KW and above：Germany Precitec/BLT	14KW and above：Germany Precitec/BLT
		Laser source	MAX/IPG/Raycus/GW	MAX/IPG/Raycus/GW	MAX/IPG/Raycus/GW	MAX/IPG/Raycus/GW
	mechanical system	Bed	○Cast iron bed	○Cast iron bed	○Cast iron bed	○Cast iron bed
		Bed	○welded bed	○welded bed	○welded bed	○welded bed
		Cast aluminum cantilever	●	●	●	●
		X-axis、Y-axis、Z-axis Servo motor and driver	Japan Yaskawa	Japan Yaskawa	Japan Yaskawa	Japan Yaskawa
		Linear Rails	Made in Taiwan HiWin	Made in Taiwan HiWin	Made in Taiwan HiWin	Made in Taiwan HiWin
		Rack	Made in Taiwan YYC	Made in Taiwan YYC	Made in Taiwan YYC	Made in Taiwan YYC
		Protective Enclosure	●	●	●	●
		Enhanced-partition Dust Removal	●	●	●	●
	Electrical system	Control system	FSCUT2000S	FSCUT2000S	FSCUT2000S	FSCUT2000S
		Control system	8kw：FSCUT8000	8kw：FSCUT8000	8kw：FSCUT8000	8kw：FSCUT8000
		Electrical proportional valve	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS
		O2Cutting gas control valve	Japan SMC	Japan SMC	Japan SMC	Japan SMC
		N2Cutting gas control valve	4KW and below：Japan SMC	4KW and below：Japan SMC	4KW and below：Japan SMC	4KW and below：Japan SMC
		N2Cutting gas control valve	6KW and above：Germany AVENTICS	6KW and above：Germany AVENTICS	6KW and above：Germany AVENTICS	6KW and above：Germany AVENTICS
