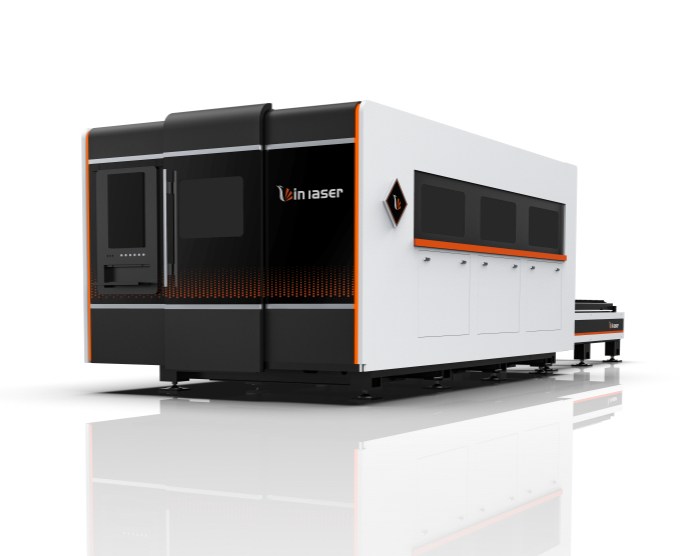

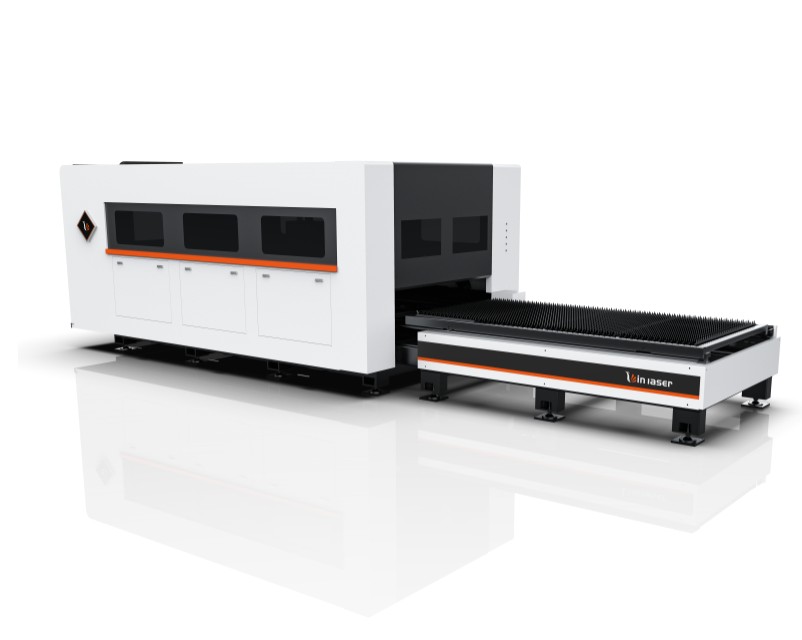

Laser Cutting Laser Machines
Laser cutting is the most widely used processing method in the laser processing industry. The invisible light beam replaces the traditional mechanical knife, which has the characteristics of high precision, fast cutting, not limited to the limitation of cutting pattern, automatic typesetting, saving materials, smooth incision and low processing cost. It will gradually improve or replace the traditional metal cutting process equipment.
Lin laser makes a speciality of large, medium and small layout laser slicing machines. intently following the worldwide frontier and in close cooperation with world-well-known laser helping suppliers along with germany, the us and the UK, the developed laser gadget has high photoelectric conversion fee, top beam exceptional and solid performance. a number of technologies had been within the leading role in china, particularly the solid-state laser slicing device in asia in phrases of reducing thickness and slicing speed. the g collection products of Lin laser are geared up with expert cutting software, adopt full surrounding double platform layout and all-spherical monitoring device to make sure the secure and strong slicing operation. the excessive-power cast iron mattress has small deformation of the overall mechanical structure, low vibration and excessive precision. because the model got here out, it has been exceedingly praised and diagnosed via clients at home and overseas. it's far exported to malaysia, south korea, russia, europe and the usa and different international locations and areas.
The unique cutting process database can carry out different intelligent cutting for different materials, optimize the cutting surface, cut a wider range of materials, faster speed, better quality and lower cost, and can be applied to the full coverage of low-power to high-power lasers.
Specification
Function meter List | LC8025 | LC6025 | LC4020 | LC3015 | ||
●standard configuration, | ||||||
○optional configuration, | ||||||
×No configuration required | ||||||
Item | Subitem | |||||
Basic parameter | Working area | 8100mm*2500mm | 6100mm*2500mm | 4000mm*2000mm | 3050mm*1530mm | |
Max.linkage speed | 160m/min | 160m/min | 160m/min | 140m/min | ||
Automatic adjustment of cutting gas pressure | 6KW below:O2 | 6KW below:O2 | 6KW below:O2 | 6KW below:O2 | ||
6KW and above:O2、N2、air | 6KW and above:O2、N2、air | 6KW and above:O2、N2、air | 6KW and above:O2、N2、air | |||
Auto-focus of laser head | ● | ● | ● | ● | ||
Performance | Max.acceleration | 2G | 2G | 2G | 2G | |
Table load bearing | 6200kg(1-4kw) | 4750kg(1-4kw) | 3550kg(1-4kw) | 1800kg(1-4kw) | ||
8000kg(≥6kw) | 6300kg(≥6kw) | 4700kg(≥6kw) | 2500kg(≥6kw) | |||
Machine overall dimensions | 19700*4215*2400mm | 15300*4500*2400mm | 12000*3700*2300mm | 9550*2330*2300mm | ||
Overall weight | 22500kg | 19500kg | 11000kg | 8300kg | ||
Configuration | Optical system | laser head | 12KW and below:BLT/Ray Tools | 12KW and below:BLT/Ray Tools | 12KW and below:BLT/Ray Tools | 12KW and below:BLT/Ray Tools |
12KW and above:Germany Precitec/BLT | 12KW and above:Germany Precitec/BLT | 13KW and above:Germany Precitec/BLT | 14KW and above:Germany Precitec/BLT | |||
Laser source | MAX/IPG/Raycus/GW | MAX/IPG/Raycus/GW | MAX/IPG/Raycus/GW | MAX/IPG/Raycus/GW | ||
mechanical system | Bed | ○Cast iron bed | ○Cast iron bed | ○Cast iron bed | ○Cast iron bed | |
○welded bed | ○welded bed | ○welded bed | ○welded bed | |||
Cast aluminum cantilever | ● | ● | ● | ● | ||
X-axis、Y-axis、Z-axis Servo motor and driver | Japan Yaskawa | Japan Yaskawa | Japan Yaskawa | Japan Yaskawa | ||
Linear Rails | Made in Taiwan HiWin | Made in Taiwan HiWin | Made in Taiwan HiWin | Made in Taiwan HiWin | ||
Rack | Made in Taiwan YYC | Made in Taiwan YYC | Made in Taiwan YYC | Made in Taiwan YYC | ||
Protective Enclosure | ● | ● | ● | ● | ||
Enhanced-partition Dust Removal | ● | ● | ● | ● | ||
Electrical system | Control system | FSCUT2000S | FSCUT2000S | FSCUT2000S | FSCUT2000S | |
8kw:FSCUT8000 | 8kw:FSCUT8000 | 8kw:FSCUT8000 | 8kw:FSCUT8000 | |||
Electrical proportional valve | Japan SMC/Germany AVENTICS | Japan SMC/Germany AVENTICS | Japan SMC/Germany AVENTICS | Japan SMC/Germany AVENTICS | ||
O2Cutting gas control valve | Japan SMC | Japan SMC | Japan SMC | Japan SMC | ||
N2Cutting gas control valve | 4KW and below:Japan SMC | 4KW and below:Japan SMC | 4KW and below:Japan SMC | 4KW and below:Japan SMC | ||
6KW and above:Germany AVENTICS | 6KW and above:Germany AVENTICS | 6KW and above:Germany AVENTICS | 6KW and above:Germany AVENTICS |
