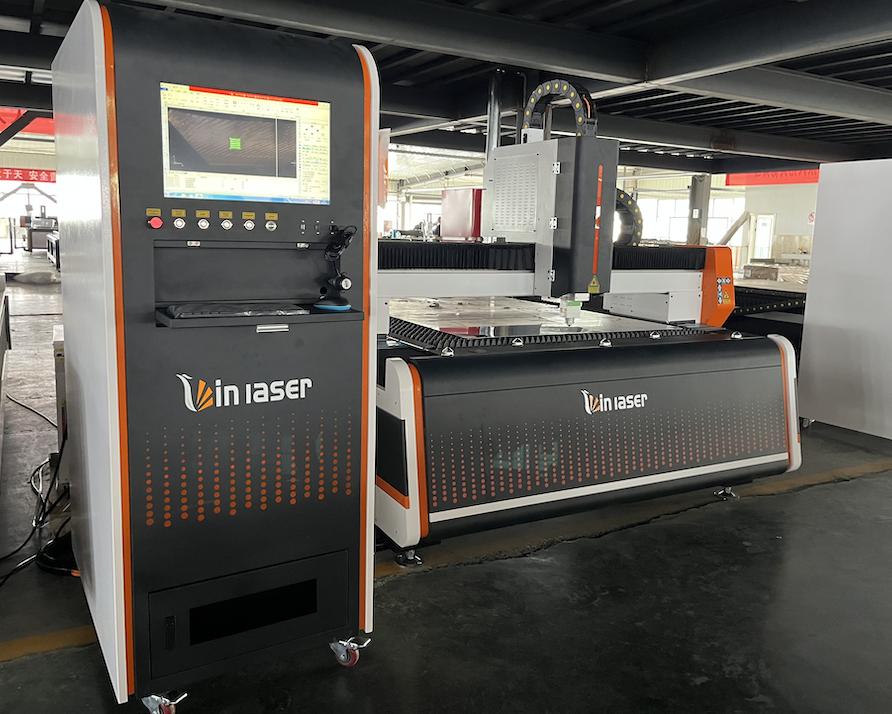

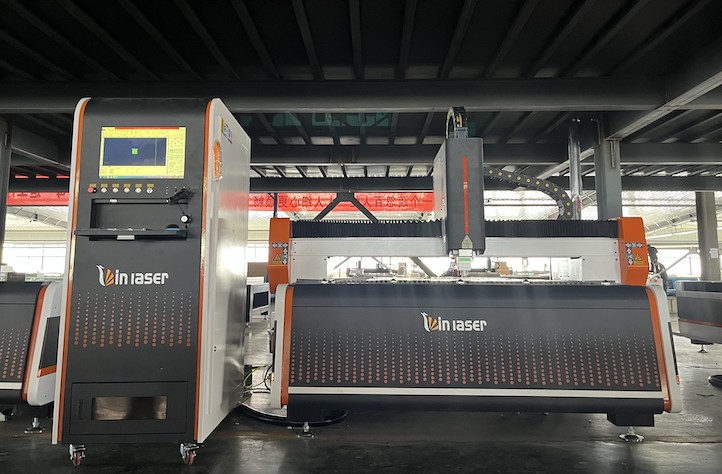

Cheap single platform laser cutting machine
The LA series laser cutting equipment produced by the company adopts high-intensity fiber laser, equipped with precision guide rails, ultra-precision equipment racks and different transmission mechanisms. It is an ultra-high-tech product that integrates disciplines such as cnc technology and is mainly used for slicing and forming of ordinary carbon metal plates, stainless steel plates, aluminum and other steels.
Lin Laser's LA series single-platform laser cutting machine perfectly shows the excellent product performance, exquisiteness, simplicity but not simplicity. . It adopts gantry-type double-drive structure, integrally welded bed, and integrally cast aluminum beam, which has good rigidity, stability and shock resistance. The machine is designed with small size, open worktable and stable structure. The machine has the advantages of accurate positioning, good acceleration performance, fast cutting speed and smooth cutting surface. The main body of the equipment adopts the casting bed process, which has higher machining accuracy, better shock resistance and higher stability.
Specification
Function meter List | LA6025 | LA6020 | LA4020 | LA3015 | ||
●standard configuration, | ||||||
○optional configuration, | ||||||
×No configuration required | ||||||
Item | Subitem | |||||
Basic parameter | Working area | 6000mm*2500mm | 6000mm*2000mm | 4000mm*2000mm | 3050mm*1530mm | |
Max.linkage speed | 110m/min | 110m/min | 110m/min | 110m/min | ||
Automatic adjustment of cutting gas pressure | 6KW below:O2 | 6KW below:O2 | 6KW below:O2 | 6KW below:O2 | ||
6KW and above:O2、N2、air | 6KW and above:O2、N2、air | 6KW and above:O2、N2、air | 6KW and above:O2、N2、air | |||
Performance | Max.acceleration | 1G | 1G | 1G | 1G | |
Table load bearing | 4750kg(1-4kw) | 4750kg(1-4kw) | 3550kg(1-4kw) | 1600kg(1-4kw) | ||
6300kg(≥6kw) | 6300kg(≥6kw) | 4700kg(≥6kw) | 2500kg(≥6kw) | |||
Overall weight | ≈8000kg | ≈7000kg | ≈6000kg | ≈5000kg | ||
Configuration | Optical system | laser head | BLT/Ray Tools/Ospri | BLT/Ray Tools/Ospri | BLT/Ray Tools/Ospri | BLT/Ray Tools/Ospri |
Laser source | MAX/IPG | MAX/IPG | MAX/IPG | MAX/IPG | ||
mechanical system | Machine bed | Welded bed | Welded bed | Welded bed | Welded bed | |
Gantry structure | Cast Aluminum gantry | Cast Aluminum gantry | Cast Aluminum gantry | Cast Aluminum gantry | ||
X-axis、Y-axis、Z-axis Servo motor and driver | Japan Fuji/France Schneider | Japan Fuji/France Schneider | Japan Fuji/France Schneider | Japan Fuji/France Schneider | ||
Linear Rails | Made in Taiwan | Made in Taiwan | Made in Taiwan | Made in Taiwan | ||
Rack | Made in Taiwan | Made in Taiwan | Made in Taiwan | Made in Taiwan | ||
Protective Enclosure | × | × | × | × | ||
Enhanced-partition Dust Removal | ● | ● | ● | ● | ||
Electrical system | Control system | FSCUT2000/2000S | FSCUT2000/2000S | FSCUT2000/2000S | FSCUT2000/2000S |
