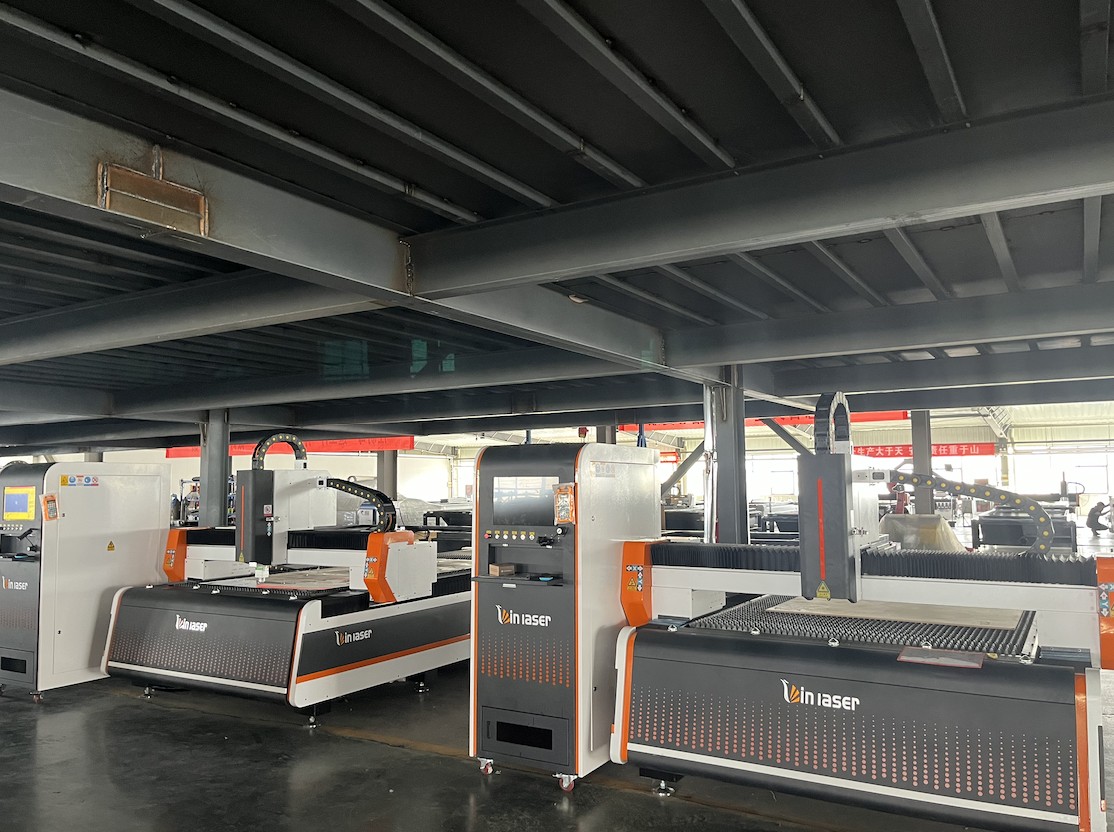

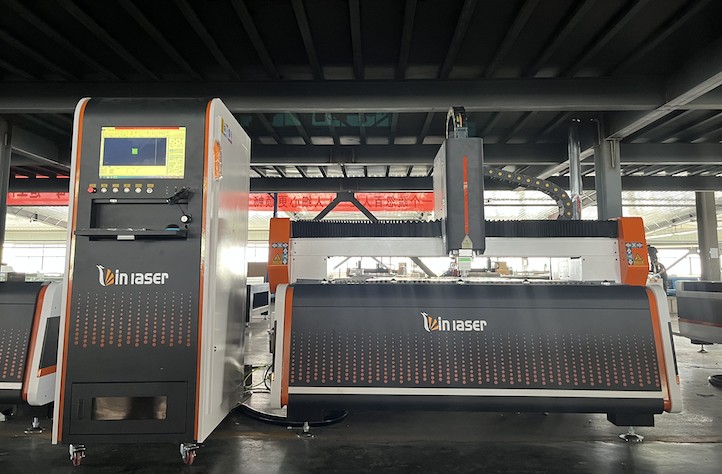

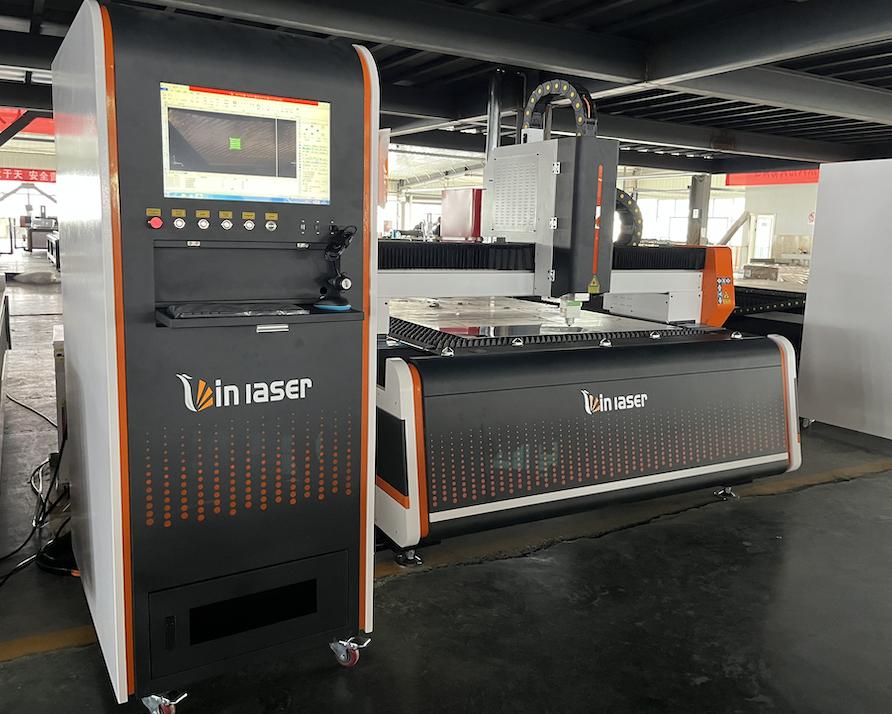

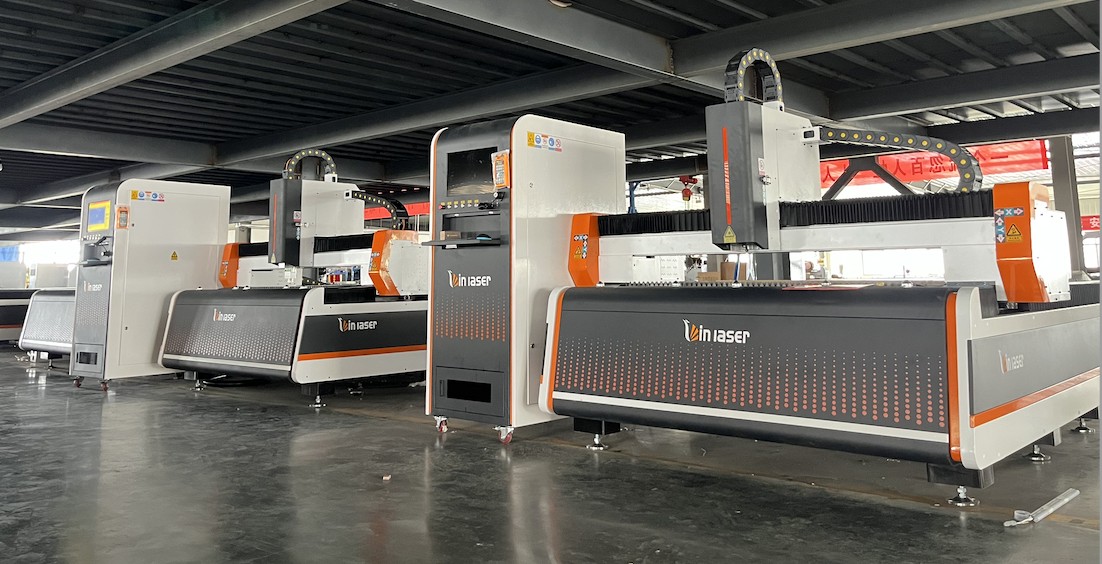

Single Platform Laser Cutting Machine Equipment
The LA series laser cutting machine produced by the company adopts high-power fiber laser, equipped with precision linear guide rail, high-precision gear rack and other transmission mechanisms. The precision CNC laser cutting machine is a high-tech product integrating laser cutting, precision machinery, CNC technology and other disciplines through a unique CNC system. It is mainly used for cutting and forming ordinary carbon steel plate, stainless steel plate, aluminum and other metal materials.
Lin laser's LA series single platform laser cutting machine perfectly suggests the remarkable, splendid, easy however now not smooth product performance. it's far vividly known as "thin plate sharp weapon" through clients. it adopts gantry double stress form, integrally welded bed and integrally strong aluminum beam, which has correct tension, stability and earthquake resistance. the gadget is designed with small extent, open workbench and structural stability. the machine has the advantages of accurate positioning, particular acceleration usual performance, fast cutting speed and clean slicing ground.
Specification
Function meter List | LA6025 | LA6020 | LA4020 | LA3015 | ||
●standard configuration, | ||||||
○optional configuration, | ||||||
×No configuration required | ||||||
Item | Subitem | |||||
Basic parameter | Working area | 6100mm*2500mm | 6100mm*2000mm | 4000mm*2000mm | 3050mm*1530mm | |
Max.linkage speed | 110m/min | 110m/min | 110m/min | 110m/min | ||
Automatic adjustment of cutting gas pressure | 6KW below:O2 | 6KW below:O2 | 6KW below:O2 | 6KW below:O2 | ||
6KW and above:O2、N2、air | 6KW and above:O2、N2、air | 6KW and above:O2、N2、air | 6KW and above:O2、N2、air | |||
Performance | Max.acceleration | 1G | 1G | 1G | 1G | |
Table load bearing | 4750kg(1-4kw) | 4750kg(1-4kw) | 3550kg(1-4kw) | 1600kg(1-4kw) | ||
6300kg(≥6kw) | 6300kg(≥6kw) | 4700kg(≥6kw) | 2500kg(≥6kw) | |||
Overall weight | ≈8000kg | ≈7000kg | ≈6000kg | ≈5000kg | ||
Configuration | Optical system | laser head | BLT/Ray Tools/Ospri | BLT/Ray Tools/Ospri | BLT/Ray Tools/Ospri | BLT/Ray Tools/Ospri |
Laser source | MAX/IPG | MAX/IPG | MAX/IPG | MAX/IPG | ||
mechanical system | Machine bed | Welded bed | Welded bed | Welded bed | Welded bed | |
Gantry structure | Cast Aluminum gantry | Cast Aluminum gantry | Cast Aluminum gantry | Cast Aluminum gantry | ||
X-axis、Y-axis、Z-axis Servo motor and driver | Japan Fuji/France Schneider | Japan Fuji/France Schneider | Japan Fuji/France Schneider | Japan Fuji/France Schneider | ||
Linear Rails | Made in Taiwan | Made in Taiwan | Made in Taiwan | Made in Taiwan | ||
Rack | Made in Taiwan | Made in Taiwan | Made in Taiwan | Made in Taiwan | ||
Protective Enclosure | × | × | × | × | ||
Enhanced-partition Dust Removal | ● | ● | ● | ● | ||
Electrical system | Control system | FSCUT2000/2000S | FSCUT2000/2000S | FSCUT2000/2000S | FSCUT2000/2000S |
