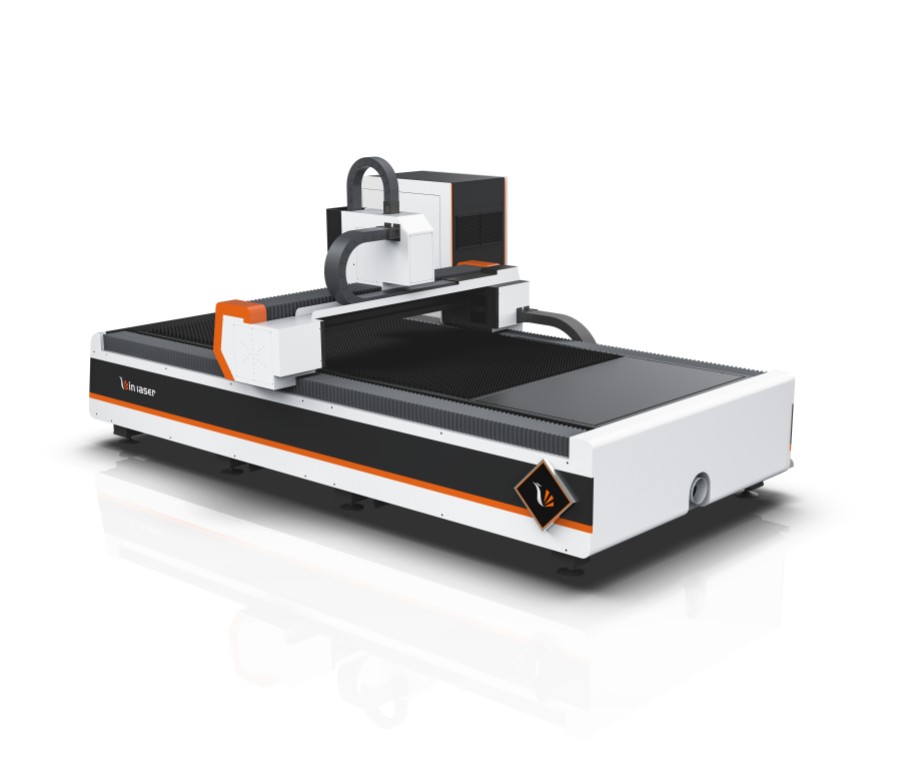

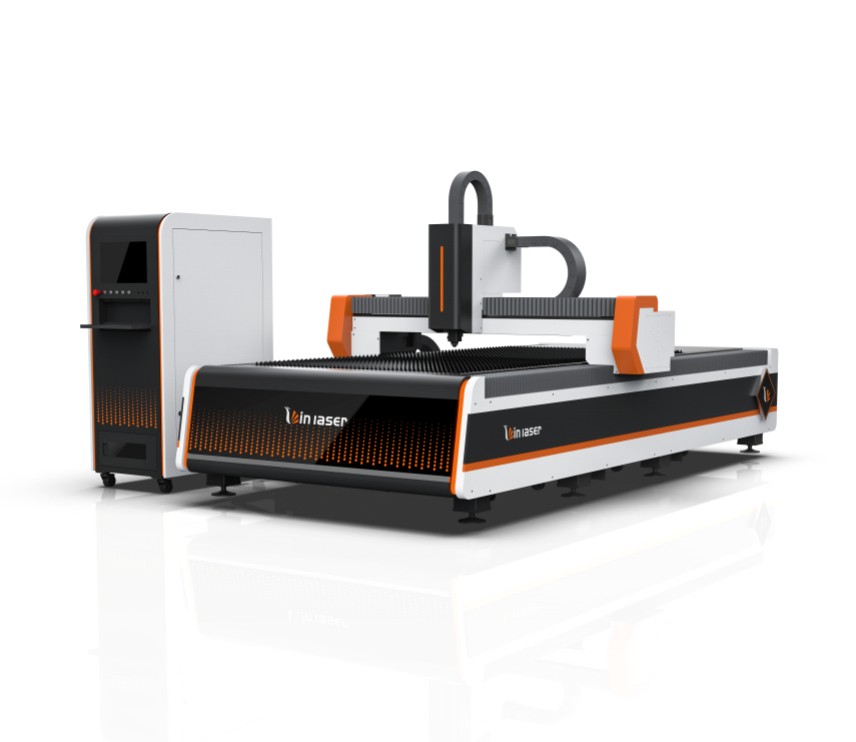

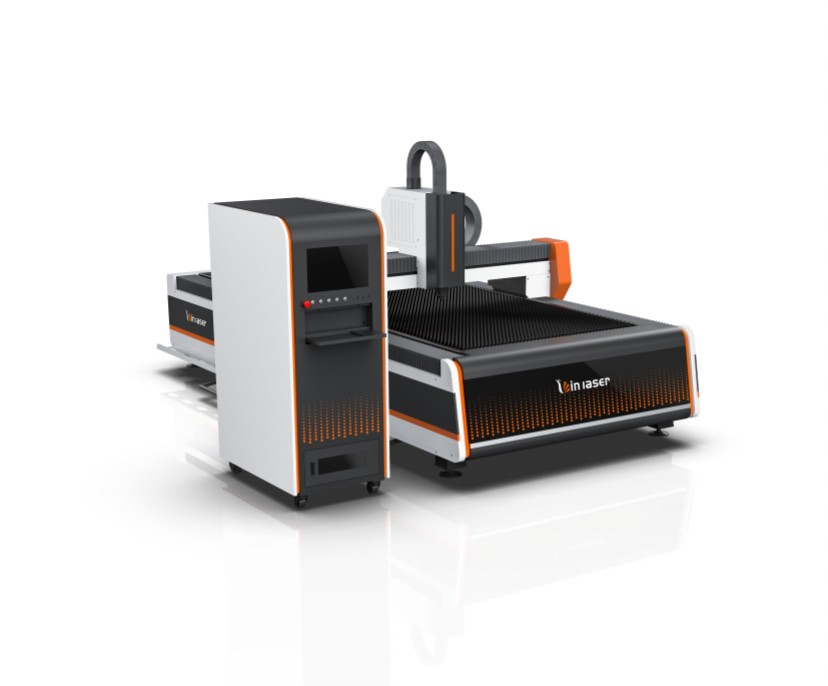

Single Platform Laser Cutting Machine In China
The LA series laser cutting machines produced by the company use high-power fiber lasers and are equipped with transmission mechanisms such as precise linear guides, high-precision racks and pinions. Precision CNC laser cutting machine is a high-tech product that integrates laser cutting, precision machinery, CNC technology and other disciplines through a unique CNC system. Mainly used for cutting and forming ordinary carbon steel plate, stainless steel plate, aluminum and other metal materials.
Lin Laser's LA series single-platform laser cutting machine perfectly shows the excellent product performance, exquisiteness, simplicity but not simplicity. It is vividly referred to by customers as a "thin sheet sharpening weapon". It adopts gantry-type double-drive structure, integrally welded bed, and integrally cast aluminum beam, which has good rigidity, stability and shock resistance. The machine is designed with small size, open worktable and stable structure. The machine has the advantages of accurate positioning, good acceleration performance, fast cutting speed and smooth cutting surface.
The laser adopts international advanced technology and has a unique cutting process database, which can perform different intelligent cutting for different materials, optimize the cutting surface, cut a wider range of materials, faster speed, better quality and lower cost, and can be applied to full coverage of low to high power lasers.
Specification
Function meter List | LA6025 | LA6020 | LA4020 | LA3015 | ||
●standard configuration, | ||||||
○optional configuration, | ||||||
×No configuration required | ||||||
Item | Subitem | |||||
Basic parameter | Working area | 6100mm*2500mm | 6100mm*2000mm | 4000mm*2000mm | 3050mm*1530mm | |
Max.linkage speed | 110m/min | 110m/min | 110m/min | 110m/min | ||
Automatic adjustment of cutting gas pressure | 6KW below:O2 | 6KW below:O2 | 6KW below:O2 | 6KW below:O2 | ||
6KW and above:O2、N2、air | 6KW and above:O2、N2、air | 6KW and above:O2、N2、air | 6KW and above:O2、N2、air | |||
Performance | Max.acceleration | 1G | 1G | 1G | 1G | |
Table load bearing | 4750kg(1-4kw) | 4750kg(1-4kw) | 3550kg(1-4kw) | 1600kg(1-4kw) | ||
6300kg(≥6kw) | 6300kg(≥6kw) | 4700kg(≥6kw) | 2500kg(≥6kw) | |||
Overall weight | ≈8000kg | ≈7000kg | ≈6000kg | ≈5000kg | ||
Configuration | Optical system | laser head | BLT/Ray Tools/Ospri | BLT/Ray Tools/Ospri | BLT/Ray Tools/Ospri | BLT/Ray Tools/Ospri |
Laser source | MAX/IPG | MAX/IPG | MAX/IPG | MAX/IPG | ||
mechanical system | Machine bed | Welded bed | Welded bed | Welded bed | Welded bed | |
Gantry structure | Cast Aluminum gantry | Cast Aluminum gantry | Cast Aluminum gantry | Cast Aluminum gantry | ||
X-axis、Y-axis、Z-axis Servo motor and driver | Japan Fuji/France Schneider | Japan Fuji/France Schneider | Japan Fuji/France Schneider | Japan Fuji/France Schneider | ||
Linear Rails | Made in Taiwan | Made in Taiwan | Made in Taiwan | Made in Taiwan | ||
Rack | Made in Taiwan | Made in Taiwan | Made in Taiwan | Made in Taiwan | ||
Protective Enclosure | × | × | × | × | ||
Enhanced-partition Dust Removal | ● | ● | ● | ● | ||
Electrical system | Control system | FSCUT2000/2000S | FSCUT2000/2000S | FSCUT2000/2000S | FSCUT2000/2000S |
