High Power Full Surrounding Laser Cutting Machine

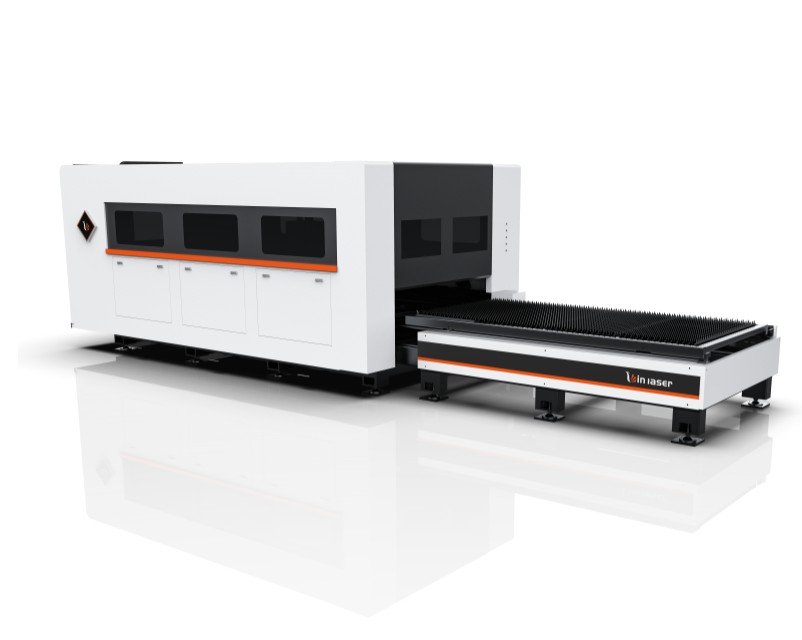

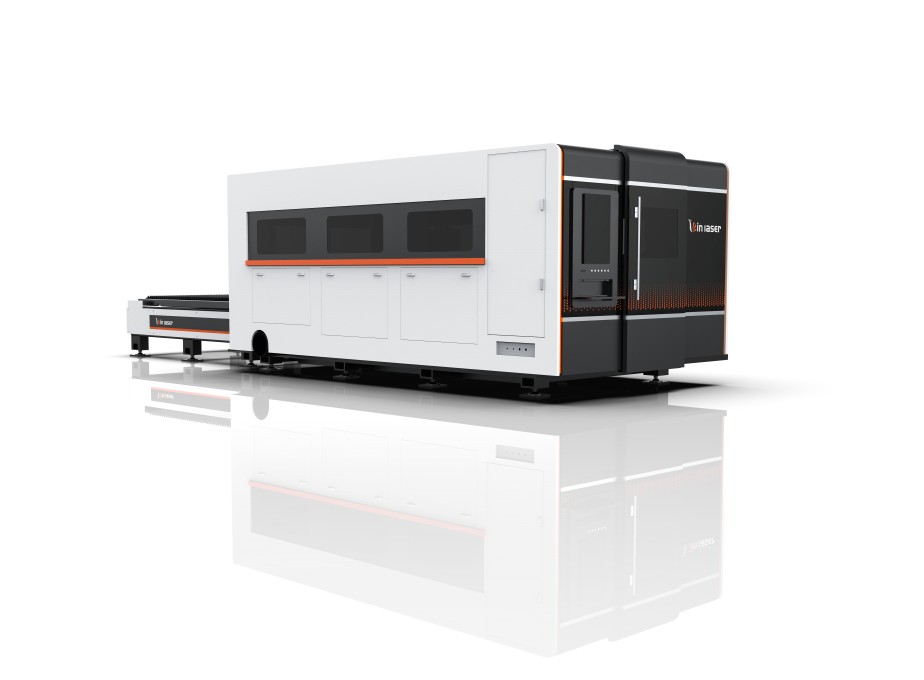

Lin Laser LC series laser cutting machine, full surround design, exchange platform and 10000 watt power. The advantages of laser cutting are: small thermal deformation, high cutting precision, low noise, no pollution, easy to achieve automatic self-cutting. As an advanced manufacturing technology, laser cutting has the advantages of wide application range, flexible process, high machining accuracy, good quality, clean production process, easy automation, intelligence, improved product quality and labor productivity. Lin Laser's LC series products are alternately cut on two platforms to improve work efficiency, reduce cutting spatter residues, and ensure operator safety.

  Contact Now
Product Details

The laser adopts international advanced technology and a unique cutting process database, which can carry out different intelligent cutting for different materials, optimize the cutting surface, cut a wider range of materials, faster speed, better quality and lower cost, and can be applied to low power Full coverage to high power lasers.

The laser head can automatically avoid obstacles. The laser head can perform high dynamic response, predict obstacles in advance, and protect the laser head to the greatest extent.

Cast aluminum beams are fast. Aluminum alloy has the characteristics of light weight and strong rigidity, which is conducive to high-speed movement during processing, and high flexibility is conducive to high-speed cutting of various graphics on the basis of high precision.

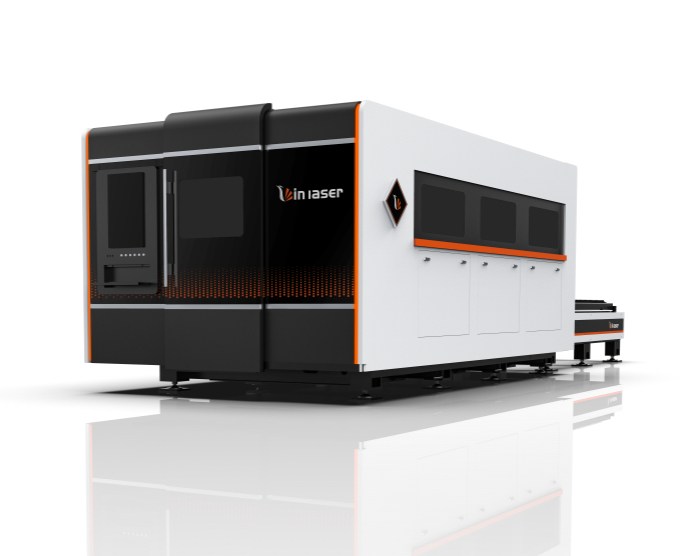

High Power Full Surrounding Laser Cutting Machine.jpg

Specification

Function&meter List

LC8025

LC6025

LC4020

3015H

●standardconfiguration,

○optional configuration,

×No configuration required

Item

Subitem

Basic parameter

Working area

8000mm*2500mm

6100mm*2500mm

4000mm*2000mm

3050mm*1530mm

Max.linkage speed

110m/min

110m/min

110m/min

110m/min


Automatic adjustment of cutting gas pressure

6KW below:O2

6KW below:O2

6KW below:O2

6KW below:O2

6KW and above:O2、N2、air

6KW and above:O2、N2、air

6KW and above:O2、N2、air

6KW and above:O2、N2、air

Performance

Max.acceleration

1.2G

1.2G

1.2G

1.2G

Table load bearing

4250kg(1-4kw)

4050kg(1-4kw)

3050kg(1-4kw)

1600kg(1-4kw)

5800kg(≥6kw)

5300kg(≥6kw)

4200kg(≥6kw)

2500kg(≥6kw)

Overall weight

≈21000kg

≈15000kg

≈10000kg

≈6000kg

Configuration

Optical system

laser head

12KW and below:BLT/Ray Tools

12KW and below:BLT/Ray Tools

12KW and below:BLT/Ray Tools

12KW and below:BLT/Ray Tools

12KW and above:Germany Precitec/BLT

13KW and above:Germany Precitec/BLT

14KW and above:Germany Precitec/BLT

15KW and above:Germany Precitec/BLT

Laser source

MAX/IPG/Raycus/GW

MAX/IPG/Raycus/GW

MAX/IPG/Raycus/GW

MAX/IPG/Raycus/GW

mechanical system

Machine bed

Welded bed

Welded bed

Welded bed

Welded bed

Gantry structure

Cast Aluminum gantry

Cast Aluminum gantry

Cast Aluminum gantry

Cast Aluminum gantry

X-axis、Y-axis、Z-axis Servo motor and driver

Japan Fuji/France Schneider

Japan Fuji/France Schneider

Japan Fuji/France Schneider

Japan Fuji/France Schneider

Linear Rails

Made in Taiwan HiWin

Made in Taiwan HiWin

Made in Taiwan HiWin

Made in Taiwan HiWin

Rack

Made in Taiwan YYC

Made in Taiwan YYC

Made in Taiwan YYC

Made in Taiwan YYC

Protective Enclosure

Enhanced-partition Dust Removal

Electrical system

Control system

FSCUT2000S

FSCUT2000S

FSCUT2000S

FSCUT2000S

8kw:FSCUT8000

8kw:FSCUT8000

8kw:FSCUT8000

8kw:FSCUT8000

Electrical proportional valve

Japan SMC/Germany AVENTICS

Japan SMC/Germany AVENTICS

Japan SMC/Germany AVENTICS

Japan SMC/Germany AVENTICS

O2Cutting gas control valve

Japan SMC

Japan SMC

Japan SMC

Japan SMC

N2Cutting gas control valve

4KW and below:Japan SMC

4KW and below:Japan SMC

4KW and below:Japan SMC

4KW and below:Japan SMC

6KW and above:Germany AVENTICS

6KW and above:Germany AVENTICS

6KW and above:Germany AVENTICS

6KW and above:Germany AVENTICS
