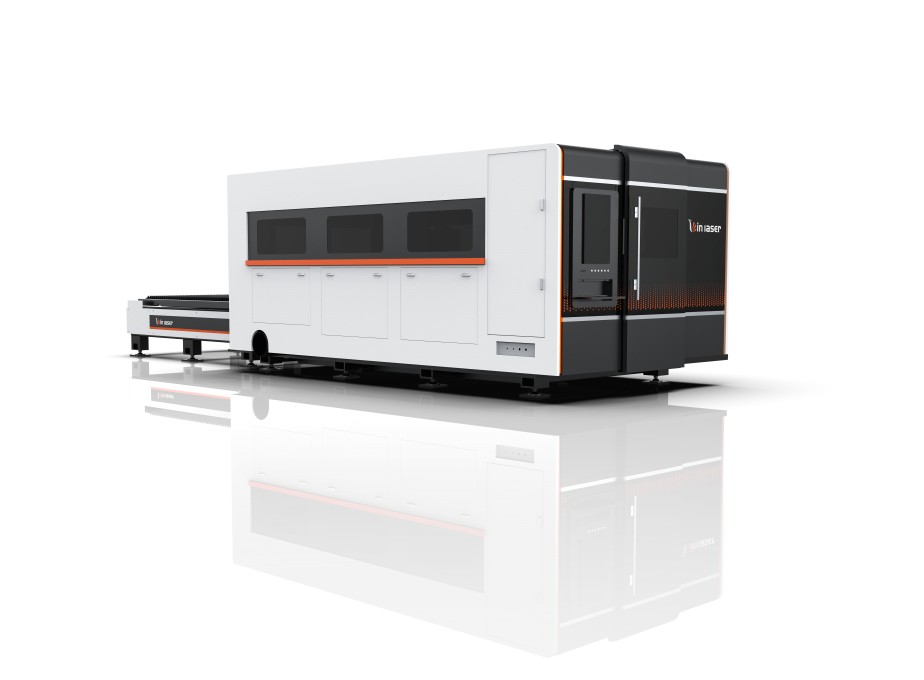

High Power Full Surround Laser Cutting

The advantages of laser cutting are: small thermal deformation, high cutting precision, low noise, no pollution, easy to achieve automatic self-cutting. As an advanced manufacturing technology, laser cutting has the advantages of wide application range, flexible process, high machining accuracy, good quality, clean production process, easy automation, intelligence, improved product quality and labor productivity. Lin Laser's LC series products are alternately cut on two platforms to improve work efficiency, reduce cutting spatter residues, and ensure operator safety.

Contact Now E-Mail Telephone WhatsApp

Product Details

The main body of the equipment adopts the welding bed process, with high mechanical strength, relatively short production cycle, easy to organize production, and low heat sensitivity

The laser adopts international advanced technology and a unique cutting process database, which can carry out different intelligent cutting for different materials, optimize the cutting surface, cut a wider range of materials, faster speed, better quality and lower cost, and can be applied to low power Full coverage to high power lasers.

Cast aluminum beams are fast. Aluminum alloy has the characteristics of light weight and strong rigidity, which is conducive to high-speed movement during processing, and high flexibility is conducive to high-speed cutting of various graphics on the basis of high precision.

Specification

Function&meter List			LC8025	LC6025	LC4020	LC3015
●standardconfiguration，
○optional configuration，
×No configuration required
Item		Subitem
Basic parameter		Working area	8000mm*2500mm	6100mm*2500mm	4000mm*2000mm	3050mm*1530mm
Basic parameter		Max.linkage speed	110m/min	110m/min	110m/min	110m/min
		Automatic adjustment of cutting gas pressure	6KW below：O2	6KW below：O2	6KW below：O2	6KW below：O2
		Automatic adjustment of cutting gas pressure	6KW and above：O2、N2、air	6KW and above：O2、N2、air	6KW and above：O2、N2、air	6KW and above：O2、N2、air
Performance		Max.acceleration	1.2G	1.2G	1.2G	1.2G
		Table load bearing	4250kg（1-4kw）	4050kg（1-4kw）	3050kg（1-4kw）	1600kg（1-4kw）
		Table load bearing	5800kg（≥6kw）	5300kg（≥6kw）	4200kg（≥6kw）	2500kg（≥6kw）
		Overall weight	≈21000kg	≈15000kg	≈10000kg	≈6000kg
Configuration	Optical system	laser head	12KW and below：BLT/Ray Tools	12KW and below：BLT/Ray Tools	12KW and below：BLT/Ray Tools	12KW and below：BLT/Ray Tools
		laser head	12KW and above：Germany Precitec/BLT	13KW and above：Germany Precitec/BLT	14KW and above：Germany Precitec/BLT	15KW and above：Germany Precitec/BLT
		Laser source	MAX/IPG/Raycus/GW	MAX/IPG/Raycus/GW	MAX/IPG/Raycus/GW	MAX/IPG/Raycus/GW
	mechanical system	Machine bed	Welded bed	Welded bed	Welded bed	Welded bed
		Gantry structure	Cast Aluminum gantry	Cast Aluminum gantry	Cast Aluminum gantry	Cast Aluminum gantry
		X-axis、Y-axis、Z-axis Servo motor and driver	Japan Fuji/France Schneider	Japan Fuji/France Schneider	Japan Fuji/France Schneider	Japan Fuji/France Schneider
		Linear Rails	Made in Taiwan HiWin	Made in Taiwan HiWin	Made in Taiwan HiWin	Made in Taiwan HiWin
		Rack	Made in Taiwan YYC	Made in Taiwan YYC	Made in Taiwan YYC	Made in Taiwan YYC
		Protective Enclosure	●	●	●	●
		Enhanced-partition Dust Removal	●	●	●	●
	Electrical system	Control system	FSCUT2000S	FSCUT2000S	FSCUT2000S	FSCUT2000S
		Control system	8kw：FSCUT8000	8kw：FSCUT8000	8kw：FSCUT8000	8kw：FSCUT8000
		Electrical proportional valve	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS
		O2Cutting gas control valve	Japan SMC	Japan SMC	Japan SMC	Japan SMC
		N2Cutting gas control valve	4KW and below：Japan SMC	4KW and below：Japan SMC	4KW and below：Japan SMC	4KW and below：Japan SMC
		N2Cutting gas control valve	6KW and above：Germany AVENTICS	6KW and above：Germany AVENTICS	6KW and above：Germany AVENTICS	6KW and above：Germany AVENTICS
