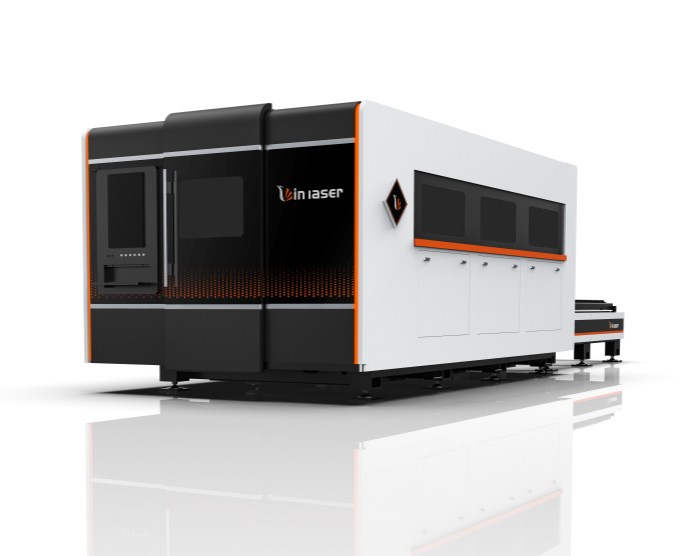

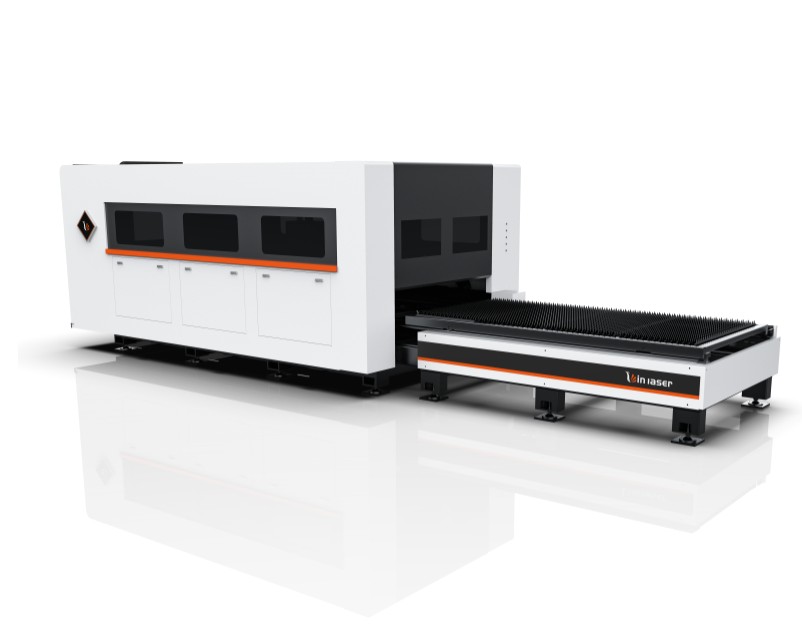

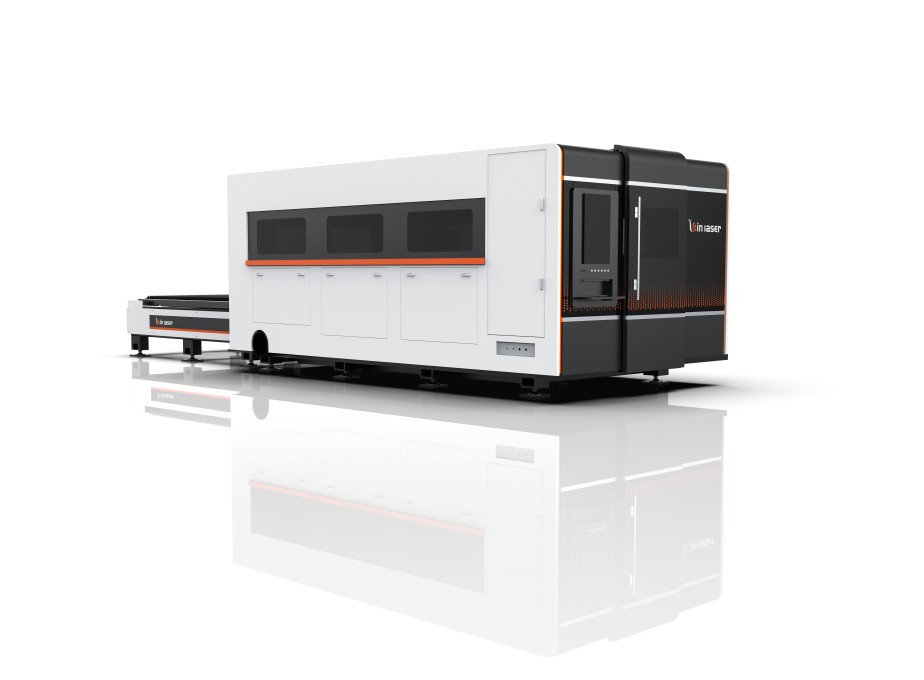

Large Enclosure High-speed Laser Cutting Machine
Laser cutting machine, laser plate cutting machine, Lin Laser LC series laser cutting machine, full surround design, exchange platform and 40000 watt power. Dual-station interaction, as stable as Mount Tai.
The main body of the equipment adopts welding bed technology, with high mechanical strength, relatively short production cycle, easy to organize production, and low thermal sensitivity. The laser adopts international advanced technology and unique cutting process database, which can perform different intelligent cutting for different materials, Optimize the cutting surface, the cutting material range is wider, the speed is faster, the quality is better, and the cost is lower, and it can be applied to the full coverage of low-power to high-power lasers.
Specification
Function&meter List | LC8025 | LC6025 | LC4020 | LC3015 | ||
●standardconfiguration， | ||||||
○optional configuration， | ||||||
×No configuration required | ||||||
Item | Subitem | |||||
Basic parameter | Working area | 8000mm*2500mm | 6100mm*2500mm | 4000mm*2000mm | 3050mm*1530mm | |
Max.linkage speed | 110m/min | 110m/min | 110m/min | 110m/min | ||
Automatic adjustment of cutting gas pressure | 6KW below：O2 | 6KW below：O2 | 6KW below：O2 | 6KW below：O2 | ||
6KW and above：O2、N2、air | 6KW and above：O2、N2、air | 6KW and above：O2、N2、air | 6KW and above：O2、N2、air | |||
Performance | Max.acceleration | 1.2G | 1.2G | 1.2G | 1.2G | |
Table load bearing | 4250kg（1-4kw） | 4050kg（1-4kw） | 3050kg（1-4kw） | 1600kg（1-4kw） | ||
5800kg（≥6kw） | 5300kg（≥6kw） | 4200kg（≥6kw） | 2500kg（≥6kw） | |||
Overall weight | ≈21000kg | ≈15000kg | ≈10000kg | ≈6000kg | ||
Configuration | Optical system | laser head | 12KW and below：BLT/Ray Tools | 12KW and below：BLT/Ray Tools | 12KW and below：BLT/Ray Tools | 12KW and below：BLT/Ray Tools |
12KW and above：Germany Precitec/BLT | 13KW and above：Germany Precitec/BLT | 14KW and above：Germany Precitec/BLT | 15KW and above：Germany Precitec/BLT | |||
Laser source | MAX/IPG/Raycus/GW | MAX/IPG/Raycus/GW | MAX/IPG/Raycus/GW | MAX/IPG/Raycus/GW | ||
mechanical system | Machine bed | Welded bed | Welded bed | Welded bed | Welded bed | |
Gantry structure | Cast Aluminum gantry | Cast Aluminum gantry | Cast Aluminum gantry | Cast Aluminum gantry | ||
X-axis、Y-axis、Z-axis Servo motor and driver | Japan Fuji/France Schneider | Japan Fuji/France Schneider | Japan Fuji/France Schneider | Japan Fuji/France Schneider | ||
Linear Rails | Made in Taiwan HiWin | Made in Taiwan HiWin | Made in Taiwan HiWin | Made in Taiwan HiWin | ||
Rack | Made in Taiwan YYC | Made in Taiwan YYC | Made in Taiwan YYC | Made in Taiwan YYC | ||
Protective Enclosure | ● | ● | ● | ● | ||
Enhanced-partition Dust Removal | ● | ● | ● | ● | ||
Electrical system | Control system | FSCUT2000S | FSCUT2000S | FSCUT2000S | FSCUT2000S | |
8kw：FSCUT8000 | 8kw：FSCUT8000 | 8kw：FSCUT8000 | 8kw：FSCUT8000 | |||
Electrical proportional valve | Japan SMC/Germany AVENTICS | Japan SMC/Germany AVENTICS | Japan SMC/Germany AVENTICS | Japan SMC/Germany AVENTICS | ||
O2Cutting gas control valve | Japan SMC | Japan SMC | Japan SMC | Japan SMC | ||
N2Cutting gas control valve | 4KW and below：Japan SMC | 4KW and below：Japan SMC | 4KW and below：Japan SMC | 4KW and below：Japan SMC | ||
6KW and above：Germany AVENTICS | 6KW and above：Germany AVENTICS | 6KW and above：Germany AVENTICS | 6KW and above：Germany AVENTICS | |||
