Laser Pipe Cutting Machinery

Wide range of materials: laser cutting can be used for carbon steel cutting, stainless steel cutting, alloy steel cutting, aluminum and alloy material cutting, etc

Perforation, complex contour and long pipe machining can be realized through simple operation.

High cutting efficiency and mass production can be realized.

The incision is flat, without burr, with fine cutting seam and less material loss, which can save at least 15% ~ 30% material loss.

Non contact processing, and the heat affected zone of laser cutting is very small, almost no deformation.

The cutting accuracy is high, and the contour accuracy can reach ± 0.05mm.

Full automatic self centering pneumatic chuck.Welded bed, integrally cast aluminum beam, stable structure and accurate positioning.Professional cutting software to achieve high-precision processing of pipes.

Contact Now E-Mail Telephone WhatsApp

Product Details

With the growth of metal pipe processing in China, in order to meet the needs of the industrial market, various pipe laser pipe cutting machines are widely used in the metal processing industry. The pipe laser cutting machine fully meets the cutting needs of users for the professional, stable and efficient cutting effect of pipes. The LT series products of Lin laser are clamped by high-precision chuck. The chuck is driven by servo motor synchronous belt. It has a special system and integrated operation process, which is suitable for diversified cutting of various pipes.

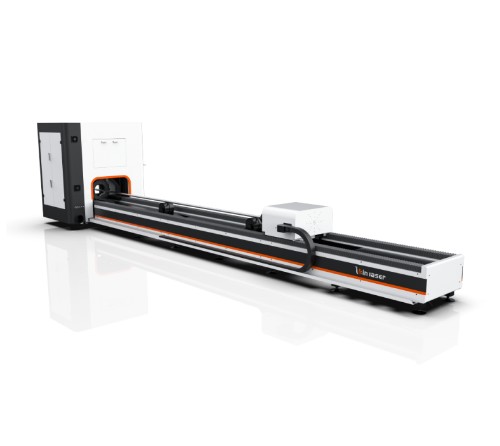

Laser Pipe Cutting Machinery.jpg

Specification

Function&meter List		LT6-360	LT6-230	LT6-160
●standard configuration，
○optional configuration，
×No configuration required
Item	Subitem
Basic parameter	tube cross-sectional shape	Round,square,rectangular,oval,rounded rectangular,Angle steel,channel steel and other tubes	Round,square,rectangular,oval,rounded rectangular,Angle steel,channel steel and other tubes	Round,square,rectangular,oval,rounded rectangular,Angle steel,channel steel and other tubes
	tube size range	Round tube：φ20-φ360mm	Round tubeΦ20-Φ230mm	Round tubeΦ10-Φ160mm
		Square tube：□20-□254mm	Square tube□20-□160mm	Square tube□10-□110mm
		Rectangulartube：	Rectangular tube：	Rectangular tube：
		300mm≥Side length≥20mm，Circumscribed circle diameter≤360mm	170mm≥Side length≥20mm，	110mm≥Side length≥20mm，
			Circumscribed circle diameter≤230mm	Circumscribed circle diameter≤160 mm
	Maximum machinable tube length	6500mm	6500mm	6500mm
Quality cutting	Active collision prevention	●	●	●
Quality cutting	Angle steel,channel steel cutting	●	●	●
Performance	Requirements for tubes	Diameter＜φ50mm thickness≥1mm；	Diameter＜φ50mm thickness≥1.2mm；	Diameter＜φ50mm thickness≥1.2mm；
		Diameter≥φ50mm	Diameter≥φ50mm	Diameter≥φ50mm
		The ratio of pipe wall to diameter of thin-walled pipe shall not be less than1/40	The ratio of pipe wall to diameter of thin-walled pipe shall not be less than1/40	The ratio of pipe wall to diameter of thin-walled pipe shall not be less than1/40
		Wall thickness≥2.5%of Diameters of tubes	Wall thickness≥2.5%of Diameters of tubes	Wall thickness≥2.5%of Diameters of tubes
		wall thickness≥5mm
		There is no such restriction for tubes with a wall thickness≥6mm
	Maximum tube length	3000mm	4500mm	4500mm
	Shortest remaining material	80mm	70mm	70mm
	Dimensions	13500×3500×2500mm	13500×3200×2500mm	13500×3200×2500mm
	Maximum tube weight	400Kg 61 kg/m	200Kg 30Kg/m	200Kg 30Kg/m
	Overall weight	7500kg	6700kg	6200kg
Optical system	Laser source	MAX/IPG/Raycus/GW	MAX/IPG/Raycus/GW	MAX/IPG/Raycus/GW
Optical system	laser head	BLT/Ray Tools/Ospri	BLT/Ray Tools/Ospri	BLT/Ray Tools/Ospri
mechanical system	Chuck drive types	Pneumatic chuck	Pneumatic chuck	Pneumatic chuck
	Standard blanking rack	●	●	●
	Linear Rails	Made in Taiwan	Made in Taiwan	Made in Taiwan
	Rack	Made in Taiwan	Made in Taiwan	Made in Taiwan
Electrical system	X-axis、Y-axis、Z-axis、A-axis	France Schneider/Japan Yaskawa	France Schneider/Japan Yaskawa	France Schneider/Japan Yaskawa
	Servo motor and driver	France Schneider/Japan Yaskawa	France Schneider/Japan Yaskawa	France Schneider/Japan Yaskawa
	Control system	FSCUT3000	FSCUT3000	FSCUT3000
	Proportional gas valve	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS
	O2Cutting gas control valve	Japan SMC	Japan SMC	Japan SMC
	N2Cutting gas control valve	Japan SMC	Japan SMC	Japan SMC
	File format	●	●	●
	File format	IGS、DXF、G Code	IGS、DXF、G Code	IGS、DXF、G Code
