Best Laser Welding Machine


Features and advantages of handheld laser welding machine:

1. The welding gun of hand-held laser welding machine replaces the traditional fixed optical path, which is more flexible and convenient, realizes long-distance laser welding and overcomes the limitation of travel space of worktable;

2. The hand-held welding head is light and flexible, easy to operate, and can meet the welding of various angles and positions. It can weld the workpiece to the required parts, which is sensitive and convenient. It can complete outdoor welding and apply all kinds of messy welding. Spot welding equipment.

3. The handheld welding head is equipped with optical fiber, which is flexible and convenient for outdoor welding. The workpiece can be welded at any angle, the dual optical path can be switched intelligently, and the time-division energy distribution is uniform.

4. The handheld laser welding machine adopts infrared positioning, and the welding head position verification and proofing position during welding. The welding position is more accurate and the weld is more beautiful.

5. Low maintenance cost: laser welding machine, without fine welding station, has low material, low energy consumption and low equipment deployment and maintenance cost. In the same working environment, we need to spend a lot of time maintaining the welding table. The deployment of manual laser setting equipment can be completed by hand-held laser welding.


  Contact Now
Product Details

Hand held laser welding machine is a transportable running device. it's also a precision welding system, which can be freely and flexibly applied in numerous environmental programs. for some production operations, it's miles applicable to diverse operations and packaging control. it is able to without troubles observe precise forms of environments, and has higher professional requirements and reliability capabilities. the expert manufacturing intention of hand held laser welding machine has the benefits of excessive popular and distinctiveness. at the identical time, it's also a sensible humanized format within the manner of ensuring accurate welding desires.

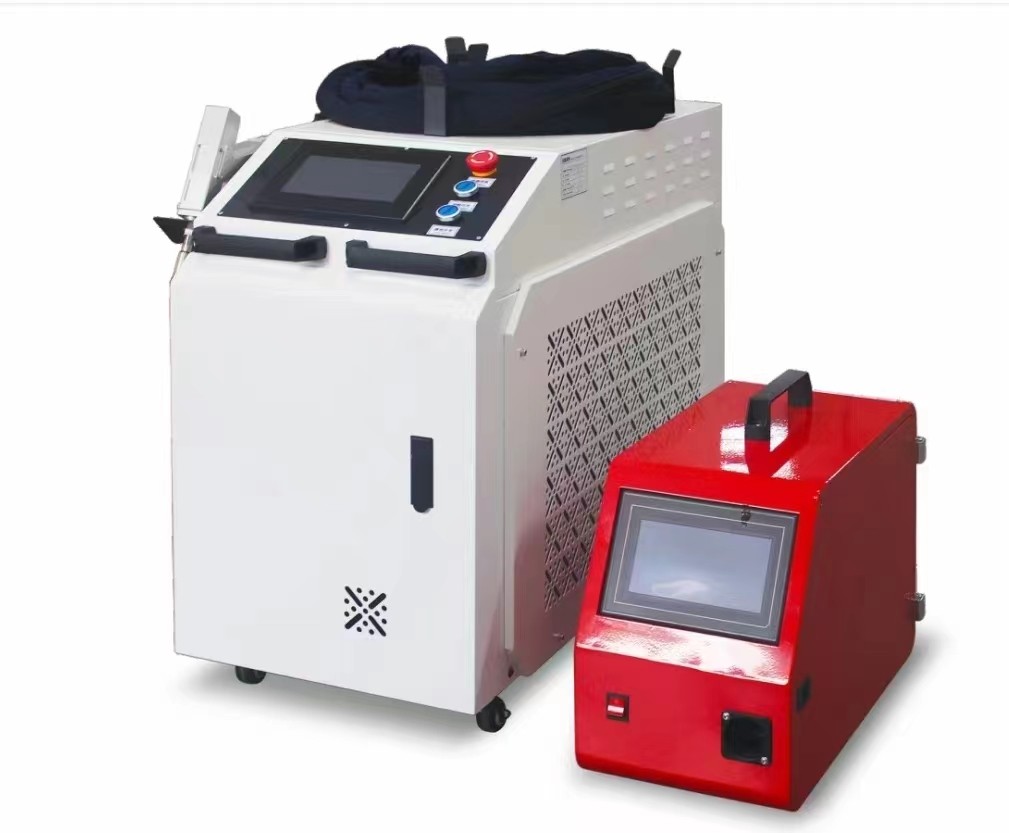

Best Laser Welding Machine.jpg


Specification

Basic Parameters




Working parameters

LW

Laser Power

1000W/1500W/2000W

Laser Wave Length

1070nm

Working Environment

10℃~40℃

Rated voltage

1000/1500W Single phase 220V

2000W Three phase 380V

Frequency

50/60Hz

Total Machine weight

120KG

Machine dimensions

1200*680*1000mm

Parameters Data




Model

LW100

LW15

LW20

Laser Power

1000W

1500W

2000W

(Stainless steel,1m/min)

3mm

4mm

5mm

(Carbon steel,1m/min)

2.5mm

3mm

4mm

(Aluminium alloy,1m/min)

2mm

3mm

4mm

cooling method

Built in water cooling
