Low Power Handheld Welding Machine

Laser welding machine, metal welding, simple and easy to operate, YD laser welding machine,

Handheld laser welding machine is a portable welding equipment that can perform precision welding, ergonomic design and flexible use for various types of welding applications. It can be easily applied to various working environments, with reliable quality and guaranteed welding standards.


  Contact Now
Product Details

Features and Benefits of Handheld Laser Welding Machines:

1. The welding torch of the hand-held laser welding machine replaces the traditional fixed optical path, which is more flexible and convenient to use. Part welding is not limited to the workbench, but can be flexibly moved longer distances depending on the environment or application.

2. The hand-held welding head is lighter and more flexible, easy to operate, and can be used for welding at various angles and positions. It is also suitable for outdoor welding and replaces other types of welding or spot welding equipment.

3. The hand-held welding head is equipped with optical fiber, which is flexible and convenient for outdoor welding. The workpiece can be welded at any angle, and the dual optical paths can be switched intelligently to maintain uniform energy distribution.

4. The handheld laser welding machine adopts infrared positioning and always monitors the position of the welding head and verifies the welding position during the welding process. This results in high weld part accuracy and better weld quality.

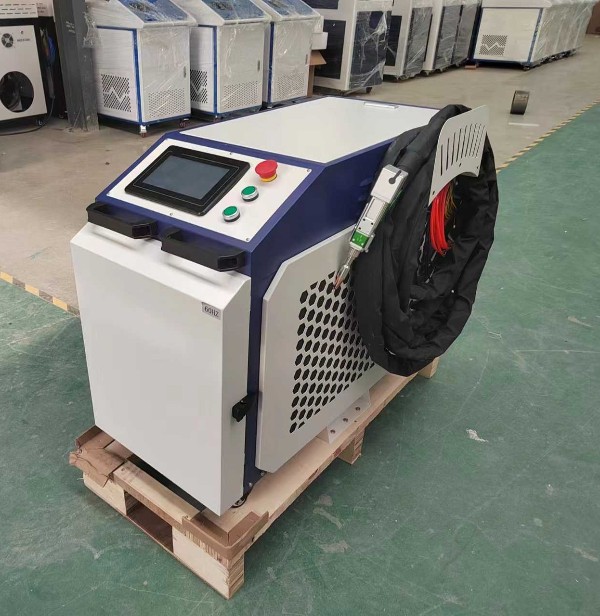

Handheld Welding Machine.jpg

Specification

Basic Parameters




Working parameters

LW

Laser Power

1000W/1500W/2000W

Laser Wave Length

1070nm

Working Environment

10℃~40℃

Rated voltage

1000/1500W Single phase 220V

2000W Three phase 380V

Frequency

50/60Hz

Total Machine weight

120KG

Machine dimensions

1200*680*1000mm

Parameters Data




Model

LW100

LW15

LW20

Laser Power

1000W

1500W

2000W

(Stainless steel,1m/min)

3mm

4mm

5mm

(Carbon steel,1m/min)

2.5mm

3mm

4mm

(Aluminium alloy,1m/min)

2mm

3mm

4mm

cooling method

Built in water cooling
