LAT Series Laser Cutting Machine on Sale

Laser tube cutting is a production efficiency With high, powerful and flexible technology, the operator can modify the design scheme without affecting it. The whole product production process; The greater advantage is that end users can control the production of short version or medium version without .Make a large number of templates so that you can respond more quickly to customer needs, which does not require casting model.



  Contact Now E-Mail Telephone WhatsApp
Product Details

The laser adopts worldwide superior generation. the unique reducing approach database can carry out precise clever reducing for one of a type materials, optimize the slicing ground, reduce a greater variety of materials, quicker pace, better superb and lower fee, and can be finished to the whole insurance of low-energy to excessive-strength lasers.

The precept body of the gadget adopts the welding mattress technique, which has excessive mechanical power, quite short manufacturing cycle, smooth to prepare production and reduce thermal sensitivity.

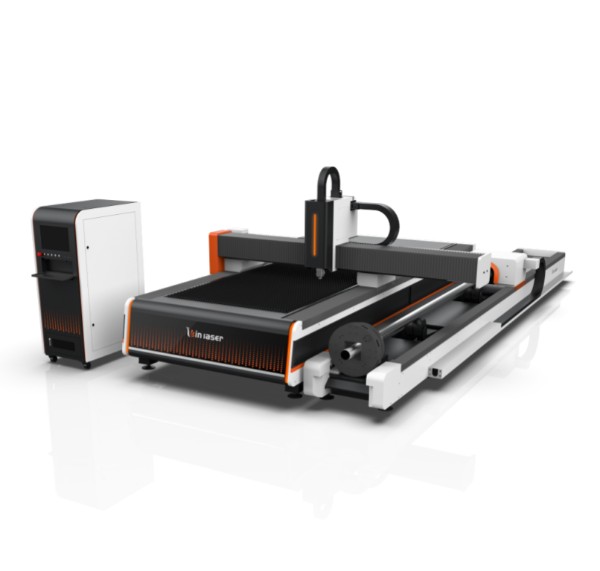

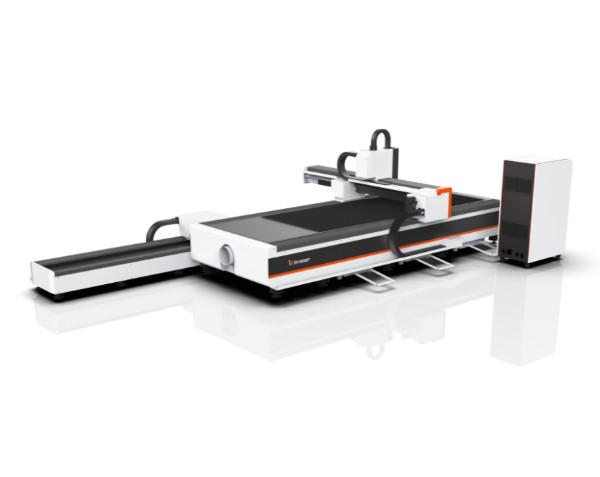

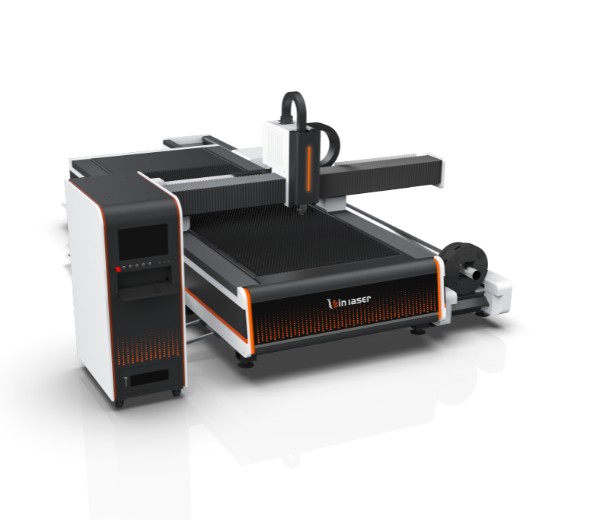

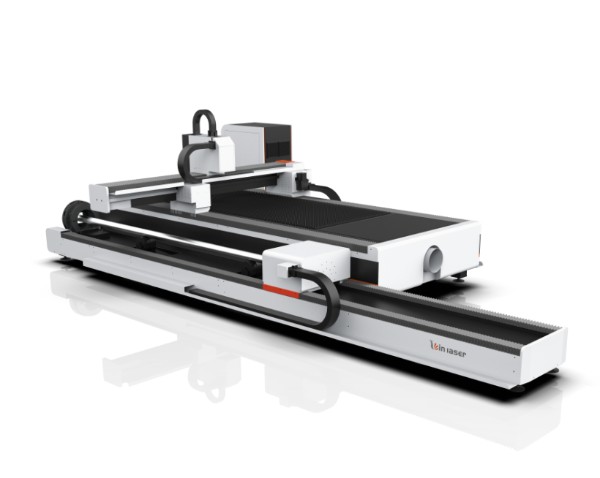

LAT Series Laser Cutting Machine on Sale.jpg


Specification

Function&meter List
●standard configuration,         ○optional configuration,
×No configuration required

LA6T

LA4T

LA3T


Item


Subitem


basic parameter


Working area

6100mm*1524mm

4000mm*1524mm

3050mm*1530mm


Max. linkage speed

91m/min

91m/min

91m/min


Tube size range

Round tube    Φ20-Φ230mm
Square tube   □20 - □160mm
Rectangular tube:
170mm≥Side length≥20mm,
Circumscribed circle diameter≤230mm

Round tube    Φ20-Φ230mm
Square tube   □20 - □160mm
Rectangular tube:
170mm≥Side length≥20mm,
Circumscribed circle diameter≤230mm

Round tube    Φ20-Φ230mm
Square tube   □20 - □160mm
Rectangular tube:
170mm≥Side length≥20mm,
Circumscribed circle diameter≤230mm


Chuck maximum load

100kg  16kg/m

100kg  16kg/m

100kg  16kg/m


Optical system


Laser source


MAX/IPG


MAX/IPG


MAX/IPG


laser head


Ospri


Ospri


Ospri


mechanical system


Machine bed


Mortise-and-tenon type plate welded segmented bed


Mortise-and-tenon type plate welded segmented bed


Mortise-and-tenon type plate welded segmented bed


Chuck drive types


Pneumatic chuck


Pneumatic chuck


Pneumatic chuck


Max. length of tube


C-M3/6 tube maximum length is 3m or 6m


C-M3/6 tube maximum length is 3m or 6m


C-M3/6 tube maximum length is 3m or 6m


X-axis、Y-axis、Z-axisServo motor and driver


 Japan Fuji/France Schneider


 Japan Fuji/France Schneider


 Japan Fuji/France Schneider


Linear Rails


Made in Taiwan


Made in Taiwan


Made in Taiwan


Rack


Made in Taiwan


Made in Taiwan


Made in Taiwan


Electrical system


Control system

FSCUT

FSCUT

FSCUT


Proportional gas valve


 Japan SMC/Germany AVENTICS


 Japan SMC/Germany AVENTICS


 Japan SMC/Germany AVENTICS


O2 Cutting gas control valve


Japan SMC


Japan SMC


Japan SMC


N2 Cutting gas control valve


Japan SMC


Japan SMC


Japan SMC


Intelligent alarm


Acceptable file formats, sheet cutting

G文件、DXF、DWG、PLT、ENG
G file、DXF、DWG、PLT、ENG

G文件、DXF、DWG、PLT、ENG
G file、DXF、DWG、PLT、ENG

G文件、DXF、DWG、PLT、ENG
G file、DXF、DWG、PLT、ENG


Acceptable file formats, pipe/tube cutting

IGS

IGS

IGS
