LAT Series Laser Cutting Machine

Laser tube cutting is a production efficiency With high, powerful and flexible technology, the operator can modify the design scheme without affecting it. The whole product production process; The greater advantage is that end users can control the production of short version or medium version without .Make a large number of templates so that you can respond more quickly to customer needs, which does not require casting model.

Contact Now E-Mail Telephone WhatsApp

Product Details

The laser adopts international advanced technology. The unique cutting process database can carry out different intelligent cutting for different materials, optimize the cutting surface, cut a wider range of materials, faster speed, better quality and lower cost, and can be applied to the full coverage of low-power to high-power lasers.

The main body of the equipment adopts the welding bed process, which has high mechanical strength, relatively short production cycle, easy to organize production and lower thermal sensitivity.

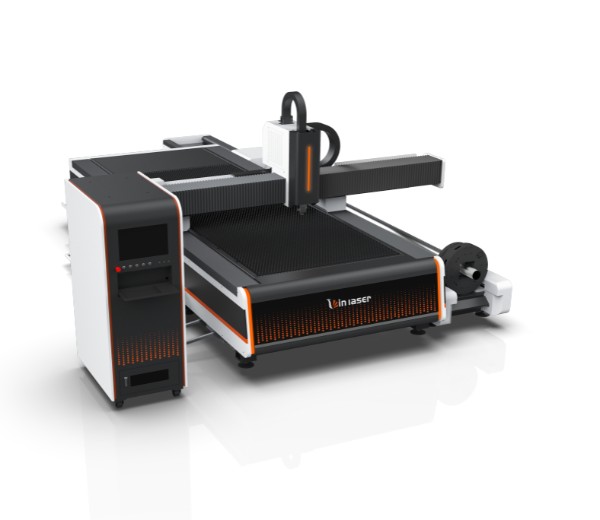

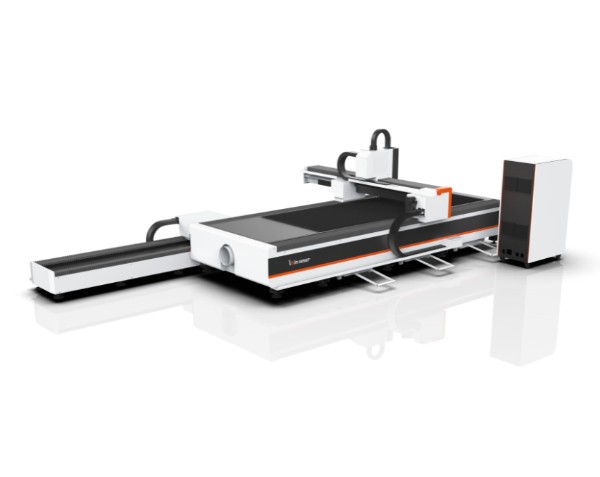

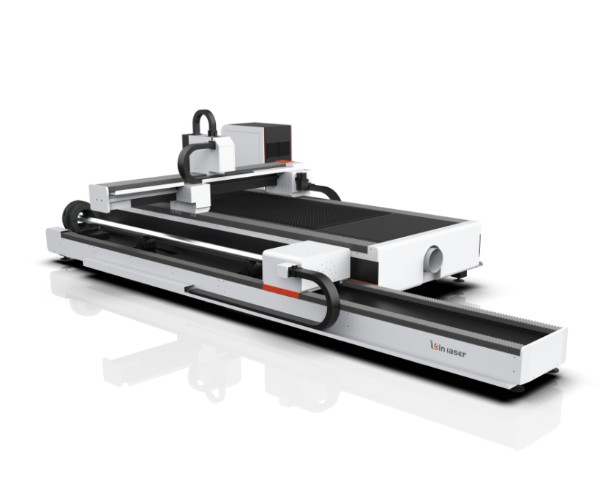

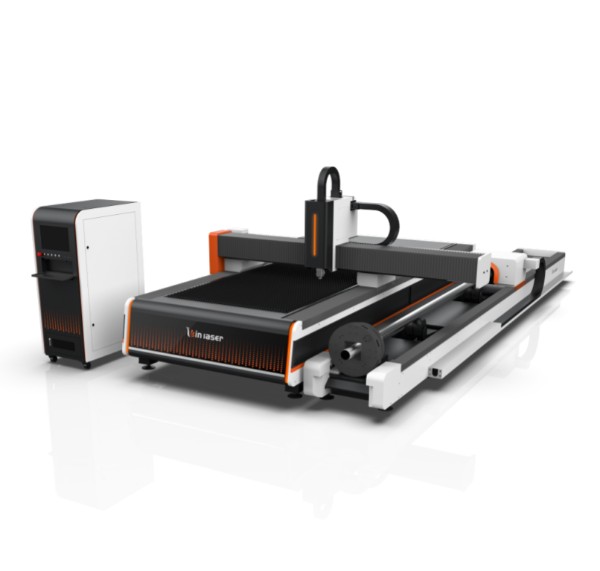

LAT Series Laser Cutting Machine.jpg

Specification

Function&meter List ●standard configuration， ○optional configuration， ×No configuration required		LA6T	LA4T	LA3T
Item	Subitem	LA6T	LA4T	LA3T
basic parameter	Working area	6100mm*1524mm	4000mm*1524mm	3050mm*1530mm
	Max. linkage speed	91m/min	91m/min	91m/min
	Tube size range	Round tube Φ20-Φ230mm Square tube □20 - □160mm Rectangular tube： 170mm≥Side length≥20mm， Circumscribed circle diameter≤230mm	Round tube Φ20-Φ230mm Square tube □20 - □160mm Rectangular tube： 170mm≥Side length≥20mm， Circumscribed circle diameter≤230mm	Round tube Φ20-Φ230mm Square tube □20 - □160mm Rectangular tube： 170mm≥Side length≥20mm， Circumscribed circle diameter≤230mm
	Chuck maximum load	100kg 16kg/m	100kg 16kg/m	100kg 16kg/m
Optical system	Laser source	MAX/IPG	MAX/IPG	MAX/IPG
Optical system	laser head	Ospri	Ospri	Ospri
mechanical system	Machine bed	Mortise-and-tenon type plate welded segmented bed	Mortise-and-tenon type plate welded segmented bed	Mortise-and-tenon type plate welded segmented bed
	Chuck drive types	Pneumatic chuck	Pneumatic chuck	Pneumatic chuck
	Max. length of tube	3m/6m/9m	3m/6m/9m	3m/6m/9m
	X-axis、Y-axis、Z-axisServo motor and driver	Japan Fuji/France Schneider	Japan Fuji/France Schneider	Japan Fuji/France Schneider
	Linear Rails	Made in Taiwan	Made in Taiwan	Made in Taiwan
	Rack	Made in Taiwan	Made in Taiwan	Made in Taiwan
Electrical system	Control system	FSCUT	FSCUT	FSCUT
	Proportional gas valve	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS
	O2 Cutting gas control valve	Japan SMC	Japan SMC	Japan SMC
	N2 Cutting gas control valve	Japan SMC	Japan SMC	Japan SMC
	Intelligent alarm	●	●	●
	Acceptable file formats, sheet cutting	G文件、DXF、DWG、PLT、ENG G file、DXF、DWG、PLT、ENG	G文件、DXF、DWG、PLT、ENG G file、DXF、DWG、PLT、ENG	G文件、DXF、DWG、PLT、ENG G file、DXF、DWG、PLT、ENG
	Acceptable file formats, pipe/tube cutting	IGS	IGS	IGS
