High Power Ultra Large Format Laser Cutting Machine

Laser cutting is the most widely used processing method in the laser processing industry. The invisible beam replaces the traditional mechanical knife and has the characteristics of high precision, fast cutting speed, not limited to the limitation of cutting pattern, automatic typesetting, material saving, smooth incision and low processing cost. It will gradually improve or replace the traditional metal cutting process equipment. When the industry's requirements for cutting machine format continue to increase, Lin laser ultra-large format LG series models came into being. This model supports ultra-large format and ultra-long body customization, can place a variety of plates, and can process a wide range of materials

Contact Now E-Mail Telephone WhatsApp

Product Details

Laser slicing is the most widely used processing technology in the laser processing industry. The invisible beam replaces the traditional mechanical knife, and has the characteristics of high precision, fast cutting speed, not limited to the dilemma of slicing patterns, automatic typesetting, material saving, easy cutting and coffee processing costs. The main body of the equipment adopts welding bed technology, which has high mechanical strength, relatively short production cycle, easy to organize production and low thermal sensitivity.

The laser adopts international advanced technology and a unique cutting process database, which can carry out different intelligent cutting for different materials, optimize the cutting surface, cut a wider range of materials, faster speed, better quality and lower cost, and can be applied to low power Full coverage to high power lasers.

The laser head can automatically avoid obstacles. The laser head can perform high dynamic response, predict obstacles in advance, and protect the laser head to the greatest extent.

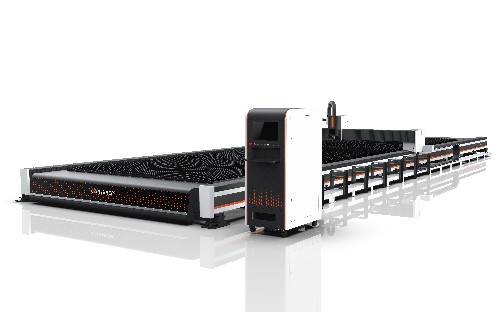

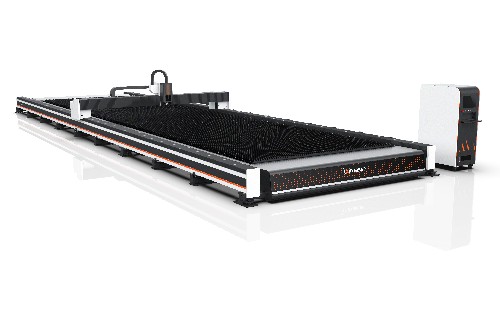

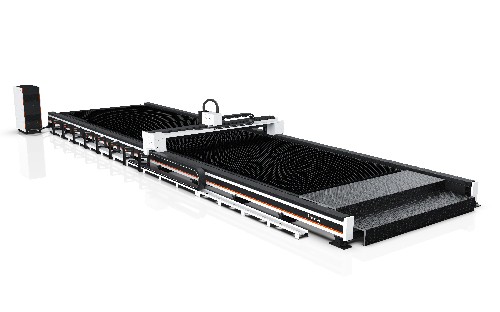

High Power Ultra Large Format Laser Cutting Machine.jpg

Specification

Function&meter List			LG24	LG20	LG16	LG12
●standard configuration，
○optional configuration，
×No configuration required
Item		Subitem
Basic parameter		Working area	24500mm*3200mm	20500mm*3200mm	16500mm*3200mm	12500mm*3200mm
Basic parameter		Max.linkage speed	50m/min	50m/min	50m/min	50m/min
		Automatic adjustment of cutting gas pressure	6KW below：O2	6KW below：O2	6KW below：O2	6KW below：O2
		Automatic adjustment of cutting gas pressure	6KW and above：O2、N2、air	6KW and above：O2、N2、air	6KW and above：O2、N2、air	6KW and above：O2、N2、air
Performance		Max.acceleration	0.8G	0.8G	0.8G	0.8G
		Table load bearing	34000KG	28000KG	23000KG	17000KG
		Distance between rails	4500mm	4500mm	4500mm	4500mm
Configuration	Optical system	laser head	12KW and below：BLT/Ray Tools	12KW and below：BLT/Ray Tools	12KW and below：BLT/Ray Tools	12KW and below：BLT/Ray Tools
		laser head	12KW and above：Germany Precitec/BLT	12KW and above：Germany Precitec/BLT	12KW and above：Germany Precitec/BLT	12KW and above：Germany Precitec/BLT
		Laser source	MAX	MAX	MAX/IPG	MAX/IPG
	mechanical system	Gantry structure	High strength welding beam	High strength welding beam	High strength welding beam	High strength welding beam
		X-axis、Y-axis、Z-axis Servo motor and driver	Japan Yaskawa	Japan Yaskawa	Japan Yaskawa	Japan Yaskawa
		Linear Rails	Made in Taiwan HiWin	Made in Taiwan HiWin	Made in Taiwan HiWin	Made in Taiwan HiWin
		Rack	Made in Taiwan YYC	Made in Taiwan YYC	Made in Taiwan YYC	Made in Taiwan YYC
		Machine bed	Segmented type rail lathe bed	Segmented type rail lathe bed	Segmented type rail lathe bed	Segmented type rail lathe bed
		Enhanced-partition Dust Removal	○	○	○	○
	Electrical system	Control system	FSCUT2000S	FSCUT2000S	FSCUT2000S	FSCUT2000S
		Control system	8kw：FSCUT8000	8kw：FSCUT8000	8kw：FSCUT8000	8kw：FSCUT8000
		Electrical proportional valve	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS
		O2 Cutting gas control valve	Japan SMC	Japan SMC	Japan SMC	Japan SMC
		N2Cutting gas control valve	4KW and below：Japan SMC	4KW and below：Japan SMC	4KW and below：Japan SMC	4KW and below：Japan SMC
		N2Cutting gas control valve	6KW and above：Germany AVENTICS	6KW and above：Germany AVENTICS	6KW and above：Germany AVENTICS	6KW and above：Germany AVENTICS
