Super Large Format Laser Cutting Machine Price

With the continuous development and strength of China's laser cutting machine industry, the increasing number of types of laser cutting machines, the continuous enrichment of laser cutting machine models, and the continuous improvement of product quality produced by major laser cutting machine enterprises. A major breakthrough has been made in the development and production of domestic laser cutting machines. Lin laser relies on its strong R & D strength and excellent product quality, based on the whole country and looking at the world. When the industry's requirements for the format of cutting machines are constantly improving, Lin laser super large format LG series models are born. This model supports the customization of super large format and super long fuselage, can place a variety of plates and has a wide range of processing materials. Intelligent processing, there is no need to replace the plate halfway, so as to improve the work efficiency. Truly achieve "private customization"!






  Contact Now E-Mail Telephone WhatsApp
Product Details

Laser slicing is the maximum broadly used processing technique within the laser processing industry. the invisible mild beam replaces the conventional mechanical knife, which has the characteristics of high precision, rapid cutting, not restricted to the dilemma of slicing pattern, automated typesetting, saving substances, easy incision and coffee processing fee. it'll regularly enhance or update the conventional metal slicing process gadget.

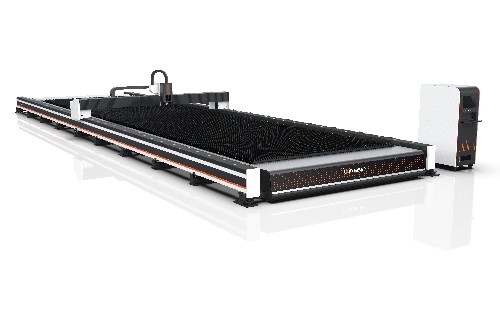

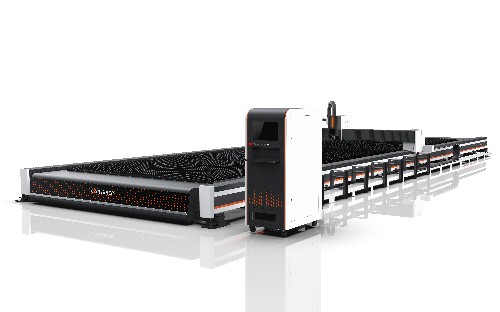

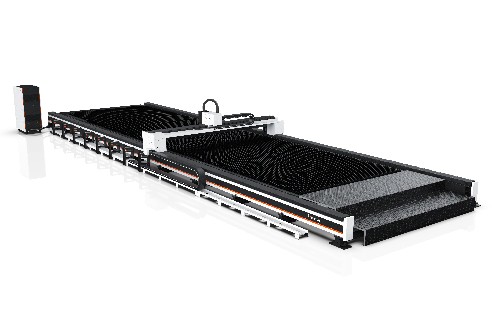

Super Large Format Laser Cutting Machine Price.jpg


Specification

Function&meter List

LG24

LG20

LG16

LG12

●standard configuration,

○optional configuration,

×No configuration required

Item

Subitem

Basic parameter

Working area

24500mm*3200mm

20500mm*3200mm

16500mm*3200mm

12500mm*3200mm

Max.linkage speed

50m/min

50m/min

50m/min

50m/min


Automatic adjustment of cutting gas pressure

6KW below:O2

6KW below:O2

6KW below:O2

6KW below:O2

6KW and above:O2、N2、air

6KW and above:O2、N2、air

6KW and above:O2、N2、air

6KW and above:O2、N2、air

Performance

Max.acceleration

0.8G

0.8G

0.8G

0.8G

Table load bearing

34000KG

28000KG

23000KG

17000KG

Distance between rails

4500mm

4500mm

4500mm

4500mm

Configuration

Optical system

laser head

12KW and below:BLT/Ray Tools

12KW and below:BLT/Ray Tools

12KW and below:BLT/Ray Tools

12KW and below:BLT/Ray Tools

12KW and above:Germany Precitec/BLT

12KW and above:Germany Precitec/BLT

12KW and above:Germany Precitec/BLT

12KW and above:Germany Precitec/BLT

Laser source

MAX

MAX

MAX/IPG

MAX/IPG

mechanical system

Gantry structure

High strength welding beam

High strength welding beam

High strength welding beam

High strength welding beam

X-axis、Y-axis、Z-axis Servo motor and driver

Japan Yaskawa

Japan Yaskawa

Japan Yaskawa

Japan Yaskawa

Linear Rails

Made in Taiwan HiWin

Made in Taiwan HiWin

Made in Taiwan HiWin

Made in Taiwan HiWin

Rack

Made in Taiwan YYC

Made in Taiwan YYC

Made in Taiwan YYC

Made in Taiwan YYC

Machine bed

Segmented type rail lathe bed

Segmented type rail lathe bed

Segmented type rail lathe bed

Segmented type rail lathe bed

Enhanced-partition Dust Removal

Electrical system

Control system

FSCUT2000S

FSCUT2000S

FSCUT2000S

FSCUT2000S

8kw:FSCUT8000

8kw:FSCUT8000

8kw:FSCUT8000

8kw:FSCUT8000

Electrical proportional valve

Japan SMC/Germany AVENTICS

Japan SMC/Germany AVENTICS

Japan SMC/Germany AVENTICS

Japan SMC/Germany AVENTICS

O2 Cutting gas control valve

Japan SMC

Japan SMC

Japan SMC

Japan SMC

N2Cutting gas control valve

4KW and below:Japan SMC

4KW and below:Japan SMC

4KW and below:Japan SMC

4KW and below:Japan SMC

6KW and above:Germany AVENTICS

6KW and above:Germany AVENTICS

6KW and above:Germany AVENTICS

6KW and above:Germany AVENTICS
