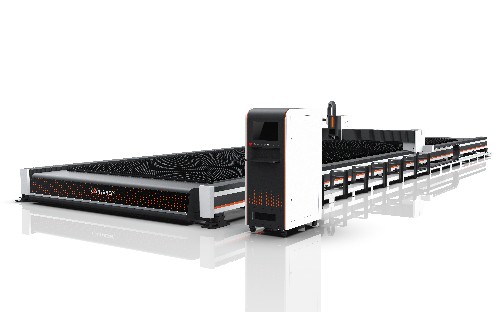

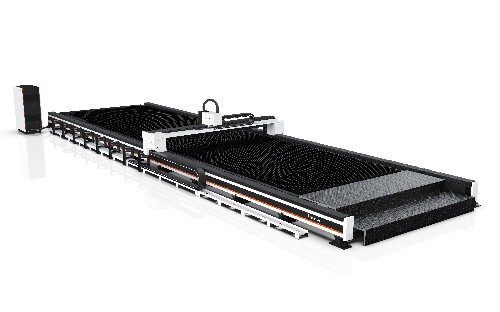

Super Large Laser Cutting Machine Equipment
With the continuous development and strength of China's laser cutting machine industry, the increasing number of types of laser cutting machines, the continuous enrichment of laser cutting machine models, and the continuous improvement of product quality produced by major laser cutting machine enterprises. A major breakthrough has been made in the development and production of domestic laser cutting machines. Lin laser relies on its strong R & D strength and excellent product quality, based on the whole country and looking at the world. When the industry's requirements for the format of cutting machines are constantly improving, Lin laser super large format LG series models are born. This model supports the customization of super large format and super long fuselage, can place a variety of plates and has a wide range of processing materials. Intelligent processing, there is no need to replace the plate halfway, so as to improve the work efficiency. Truly achieve "private customization"!
Laser cutting is the maximum substantially used processing method inside the laser processing industry. the invisible slight beam replaces the traditional mechanical knife, which has the developments of immoderate precision, fast cutting, not confined to the predicament of decreasing pattern, automated typesetting, saving substances, easy incision and coffee processing fee. it's going to regularly enhance or update the conventional metal slicing technique machine.
Specification
Function&meter List | LG24 | LG20 | LG16 | LG12 | ||
●standard configuration, | ||||||
○optional configuration, | ||||||
×No configuration required | ||||||
Item | Subitem | |||||
Basic parameter | Working area | 24500mm*3200mm | 20500mm*3200mm | 16500mm*3200mm | 12500mm*3200mm | |
Max.linkage speed | 50m/min | 50m/min | 50m/min | 50m/min | ||
Automatic adjustment of cutting gas pressure | 6KW below:O2 | 6KW below:O2 | 6KW below:O2 | 6KW below:O2 | ||
6KW and above:O2、N2、air | 6KW and above:O2、N2、air | 6KW and above:O2、N2、air | 6KW and above:O2、N2、air | |||
Performance | Max.acceleration | 0.8G | 0.8G | 0.8G | 0.8G | |
Table load bearing | 34000KG | 28000KG | 23000KG | 17000KG | ||
Distance between rails | 4500mm | 4500mm | 4500mm | 4500mm | ||
Configuration | Optical system | laser head | 12KW and below:BLT/Ray Tools | 12KW and below:BLT/Ray Tools | 12KW and below:BLT/Ray Tools | 12KW and below:BLT/Ray Tools |
12KW and above:Germany Precitec/BLT | 12KW and above:Germany Precitec/BLT | 12KW and above:Germany Precitec/BLT | 12KW and above:Germany Precitec/BLT | |||
Laser source | MAX | MAX | MAX/IPG | MAX/IPG | ||
mechanical system | Gantry structure | High strength welding beam | High strength welding beam | High strength welding beam | High strength welding beam | |
X-axis、Y-axis、Z-axis Servo motor and driver | Japan Yaskawa | Japan Yaskawa | Japan Yaskawa | Japan Yaskawa | ||
Linear Rails | Made in Taiwan HiWin | Made in Taiwan HiWin | Made in Taiwan HiWin | Made in Taiwan HiWin | ||
Rack | Made in Taiwan YYC | Made in Taiwan YYC | Made in Taiwan YYC | Made in Taiwan YYC | ||
Machine bed | Segmented type rail lathe bed | Segmented type rail lathe bed | Segmented type rail lathe bed | Segmented type rail lathe bed | ||
Enhanced-partition Dust Removal | ○ | ○ | ○ | ○ | ||
Electrical system | Control system | FSCUT2000S | FSCUT2000S | FSCUT2000S | FSCUT2000S | |
8kw:FSCUT8000 | 8kw:FSCUT8000 | 8kw:FSCUT8000 | 8kw:FSCUT8000 | |||
Electrical proportional valve | Japan SMC/Germany AVENTICS | Japan SMC/Germany AVENTICS | Japan SMC/Germany AVENTICS | Japan SMC/Germany AVENTICS | ||
O2 Cutting gas control valve | Japan SMC | Japan SMC | Japan SMC | Japan SMC | ||
N2Cutting gas control valve | 4KW and below:Japan SMC | 4KW and below:Japan SMC | 4KW and below:Japan SMC | 4KW and below:Japan SMC | ||
6KW and above:Germany AVENTICS | 6KW and above:Germany AVENTICS | 6KW and above:Germany AVENTICS | 6KW and above:Germany AVENTICS |
