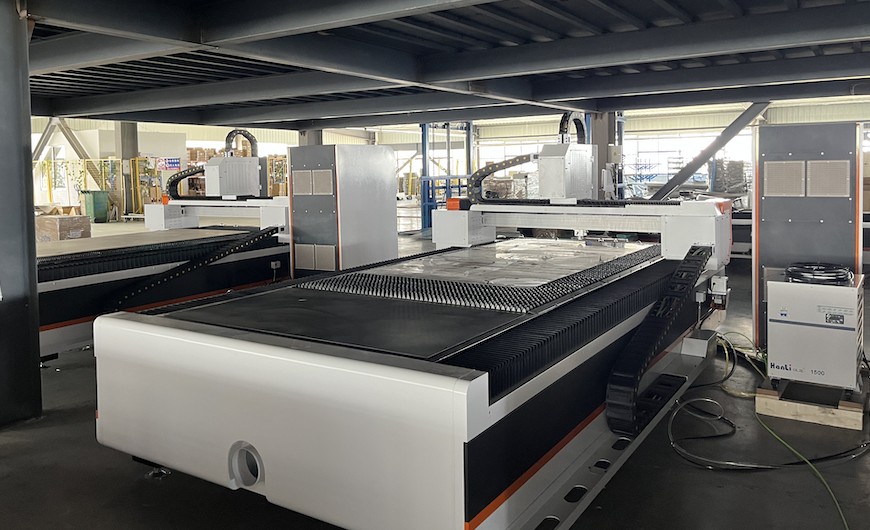

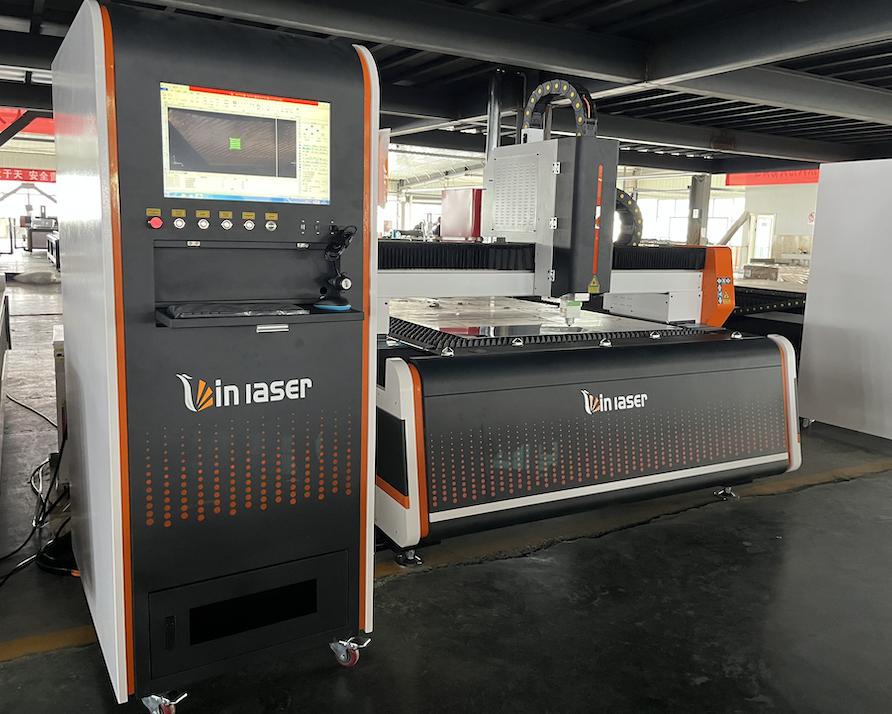

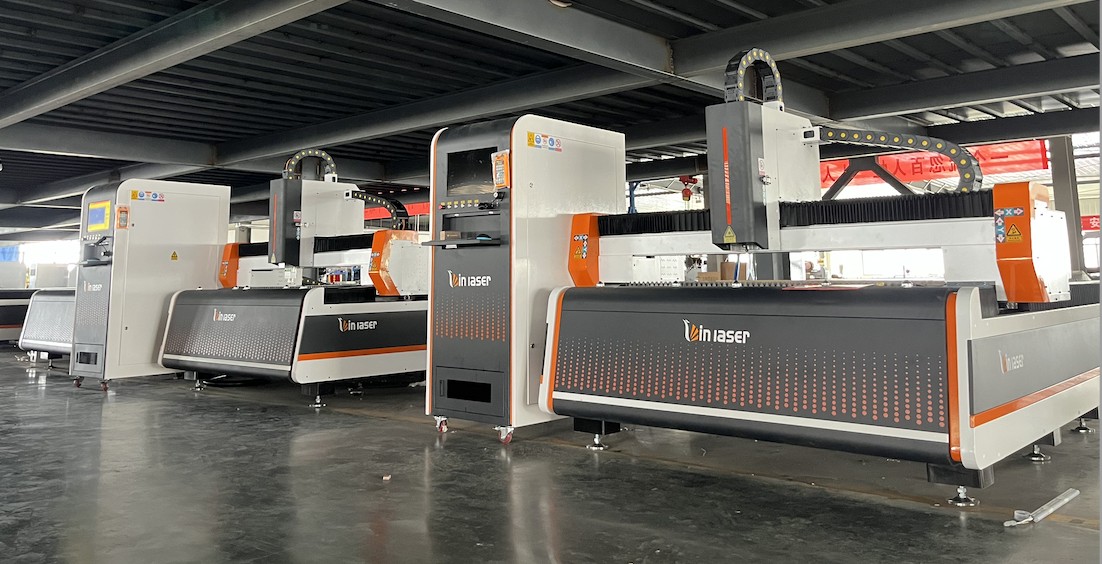

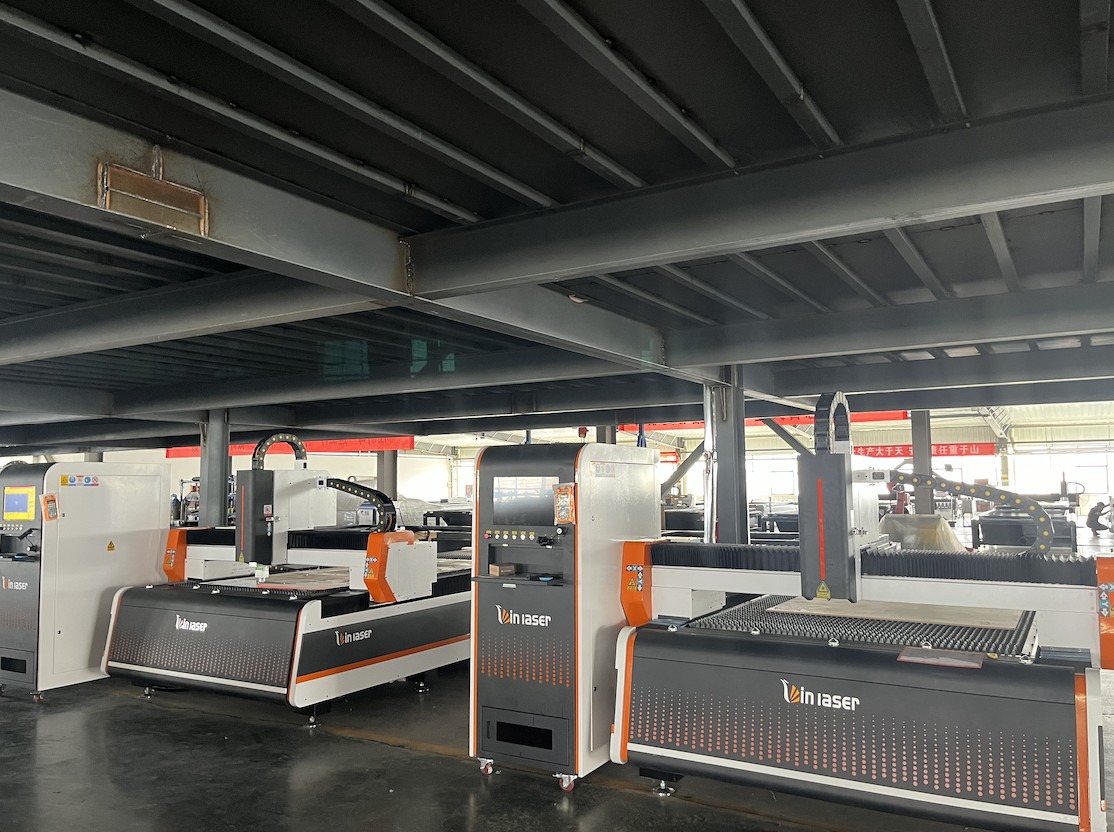

High-speed Single Platform Laser Cutting Machine

The LA series laser cutting machine produced by the company adopts high-power fiber laser, equipped with precision linear guide rail, high-precision gear rack and other transmission mechanisms. The precision CNC laser cutting machine is a high-tech product integrating laser cutting, precision machinery, CNC technology and other disciplines through a unique CNC system. It is mainly used for cutting and forming ordinary carbon steel plate, stainless steel plate, aluminum and other metal materials.

Contact Now

Product Details

The laser head can automatically avoid obstacles. The laser head can carry out high dynamic response, predict obstacles in advance and protect the laser head to the greatest extent.

Cast aluminum beam is fast. Aluminum alloy has the metal characteristics of light weight and strong rigidity, which is conducive to high-speed movement in the machining process, and high flexibility is conducive to high-speed cutting of various graphics on the basis of high precision.

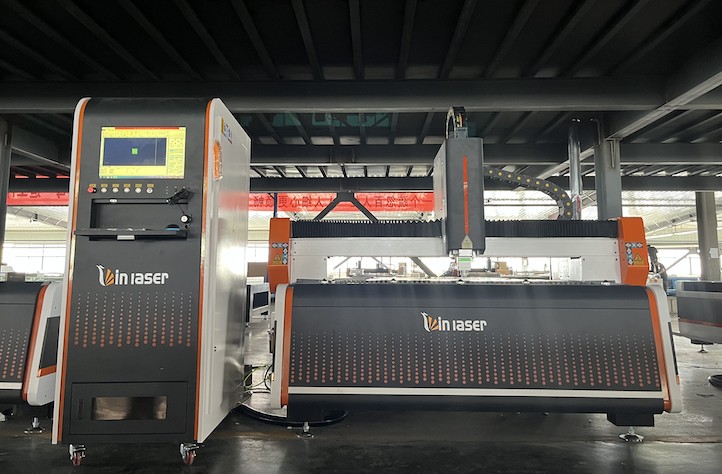

High-speed Single Platform Laser Cutting Machine .jpg

Specification

Function meter List			LA6025	LA6020	LA4020	LA3015
●standard configuration，
○optional configuration，
×No configuration required
Item		Subitem
Basic parameter		Working area	6100mm*2500mm	6100mm*2000mm	4000mm*2000mm	3050mm*1530mm
Basic parameter		Max.linkage speed	110m/min	110m/min	110m/min	110m/min
		Automatic adjustment of cutting gas pressure	6KW below：O2	6KW below：O2	6KW below：O2	6KW below：O2
		Automatic adjustment of cutting gas pressure	6KW and above：O2、N2、air	6KW and above：O2、N2、air	6KW and above：O2、N2、air	6KW and above：O2、N2、air
Performance		Max.acceleration	1G	1G	1G	1G
		Table load bearing	4750kg（1-4kw）	4750kg（1-4kw）	3550kg（1-4kw）	1600kg（1-4kw）
		Table load bearing	6300kg（≥6kw）	6300kg（≥6kw）	4700kg（≥6kw）	2500kg（≥6kw）
		Overall weight	≈8000kg	≈7000kg	≈6000kg	≈5000kg
Configuration	Optical system	laser head	BLT/Ray Tools/Ospri	BLT/Ray Tools/Ospri	BLT/Ray Tools/Ospri	BLT/Ray Tools/Ospri
	Optical system	Laser source	MAX/IPG	MAX/IPG	MAX/IPG	MAX/IPG
	mechanical system	Machine bed	Welded bed	Welded bed	Welded bed	Welded bed
		Gantry structure	Cast Aluminum gantry	Cast Aluminum gantry	Cast Aluminum gantry	Cast Aluminum gantry
		X-axis、Y-axis、Z-axis Servo motor and driver	Japan Fuji/France Schneider	Japan Fuji/France Schneider	Japan Fuji/France Schneider	Japan Fuji/France Schneider
		Linear Rails	Made in Taiwan	Made in Taiwan	Made in Taiwan	Made in Taiwan
		Rack	Made in Taiwan	Made in Taiwan	Made in Taiwan	Made in Taiwan
		Protective Enclosure	×	×	×	×
		Enhanced-partition Dust Removal	●	●	●	●
	Electrical system	Control system	FSCUT2000/2000S	FSCUT2000/2000S	FSCUT2000/2000S	FSCUT2000/2000S
