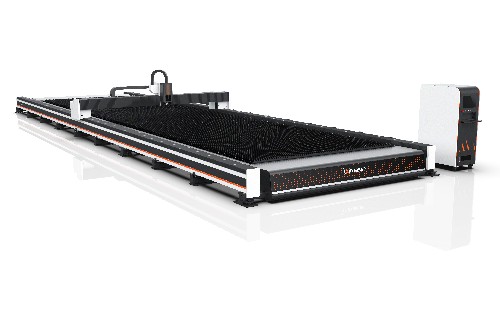

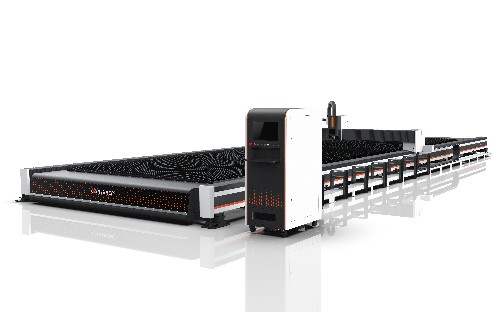

Super Large Laser Cutting Machine for High-speed

With the continuous development and strength of China's laser cutting machine industry, the increasing number of types of laser cutting machines, the continuous enrichment of laser cutting machine models, and the continuous improvement of product quality produced by major laser cutting machine enterprises. A major breakthrough has been made in the development and production of domestic laser cutting machines. Lin laser relies on its strong R & D strength and excellent product quality, based on the whole country and looking at the world. When the industry's requirements for the format of cutting machines are constantly improving, Lin laser super large format LG series models are born. This model supports the customization of super large format and super long fuselage, can place a variety of plates and has a wide range of processing materials. Intelligent processing, there is no need to replace the plate halfway, so as to improve the work efficiency. Truly achieve "private customization"!

Contact Now

Product Details

Laser slicing is the most extensively used processing method within the laser processing industry. the invisible mild beam replaces the traditional mechanical knife, which has the traits of excessive precision, speedy cutting, not constrained to the dilemma of reducing pattern, automatic typesetting, saving materials, easy incision and coffee processing charge. it will regularly enhance or replace the traditional steel cutting technique machine.

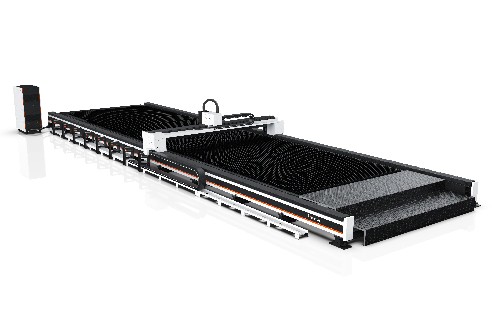

Super Large Laser Cutting Machine for High-speed.jpg

Specification

Function&meter List			LG24	LG20	LG16	LG12
●standard configuration，
○optional configuration，
×No configuration required
Item		Subitem
Basic parameter		Working area	24500mm*3200mm	20500mm*3200mm	16500mm*3200mm	12500mm*3200mm
Basic parameter		Max.linkage speed	50m/min	50m/min	50m/min	50m/min
		Automatic adjustment of cutting gas pressure	6KW below：O2	6KW below：O2	6KW below：O2	6KW below：O2
		Automatic adjustment of cutting gas pressure	6KW and above：O2、N2、air	6KW and above：O2、N2、air	6KW and above：O2、N2、air	6KW and above：O2、N2、air
Performance		Max.acceleration	0.8G	0.8G	0.8G	0.8G
		Table load bearing	34000KG	28000KG	23000KG	17000KG
		Distance between rails	4500mm	4500mm	4500mm	4500mm
Configuration	Optical system	laser head	12KW and below：BLT/Ray Tools	12KW and below：BLT/Ray Tools	12KW and below：BLT/Ray Tools	12KW and below：BLT/Ray Tools
		laser head	12KW and above：Germany Precitec/BLT	12KW and above：Germany Precitec/BLT	12KW and above：Germany Precitec/BLT	12KW and above：Germany Precitec/BLT
		Laser source	MAX	MAX	MAX/IPG	MAX/IPG
	mechanical system	Gantry structure	High strength welding beam	High strength welding beam	High strength welding beam	High strength welding beam
		X-axis、Y-axis、Z-axis Servo motor and driver	Japan Yaskawa	Japan Yaskawa	Japan Yaskawa	Japan Yaskawa
		Linear Rails	Made in Taiwan HiWin	Made in Taiwan HiWin	Made in Taiwan HiWin	Made in Taiwan HiWin
		Rack	Made in Taiwan YYC	Made in Taiwan YYC	Made in Taiwan YYC	Made in Taiwan YYC
		Machine bed	Segmented type rail lathe bed	Segmented type rail lathe bed	Segmented type rail lathe bed	Segmented type rail lathe bed
		Enhanced-partition Dust Removal	○	○	○	○
	Electrical system	Control system	FSCUT2000S	FSCUT2000S	FSCUT2000S	FSCUT2000S
		Control system	8kw：FSCUT8000	8kw：FSCUT8000	8kw：FSCUT8000	8kw：FSCUT8000
		Electrical proportional valve	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS
		O2 Cutting gas control valve	Japan SMC	Japan SMC	Japan SMC	Japan SMC
		N2Cutting gas control valve	4KW and below：Japan SMC	4KW and below：Japan SMC	4KW and below：Japan SMC	4KW and below：Japan SMC
		N2Cutting gas control valve	6KW and above：Germany AVENTICS	6KW and above：Germany AVENTICS	6KW and above：Germany AVENTICS	6KW and above：Germany AVENTICS
